Sony Vaio Fit 13A Heatsink + Fan Assembly Replacement

Автор: Marii
  • Комментарии: 1
Sony Vaio Fit 13A Heatsink + Fan Assembly Replacement

Сложность

Moderate

Шаги

6

Необходимое время

Нет оценки

Введение

  1. D6cAKHCfKMm5Sv3N
    D6cAKHCfKMm5Sv3N
    52OGHCZRtjJ2KBGZ

    • Starting with the laptop top-down, locate and remove the twelve 1mm Phillips #0 screws securing the back cover to the main body of the computer.

  2. 2QJJsayImbYSlPXn
    2QJJsayImbYSlPXn
    lynJEslTOeB1nhbS

    • Use the Plastic Opening Tools or Metal Spudger to carefully loosen back cover from the body of the computer.

    • Be sure to avoid headphone jack when removing back cover by lifting cover away from computer and up.

  3. owZAOwECDQ6eqVxb

    • Lift off back cover to access inner components of computer.

  4. gKZk1SpjoxUfbQOS
    gKZk1SpjoxUfbQOS
    Vm4SRhjmCqYJNOHc

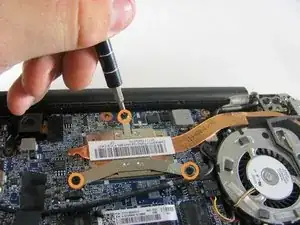

    • Remove the three 1mm Phillips #0 screws surrounding the fan.

    • Loosen the three 1mm Phillips #0 screws. These screws will stay captive to the heatsink.

  5. lptiawDCjflR2lZl
    lptiawDCjflR2lZl
    q4FO2YpBwjNbG2mG
    QsKa5c5Xy1EpYdmE

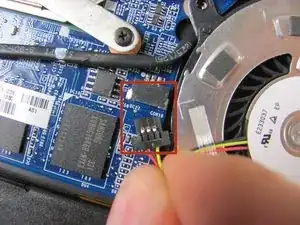

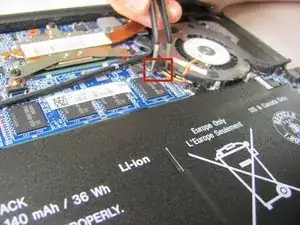

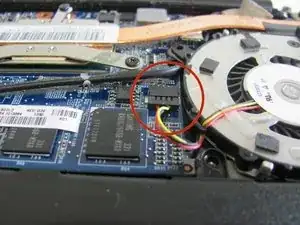

    • Use tweezers to carefully unplug the fan connector.

  6. WXfOPaGxtKFBlOIW
    WXfOPaGxtKFBlOIW
    JjuisiAGKZ1In5SR

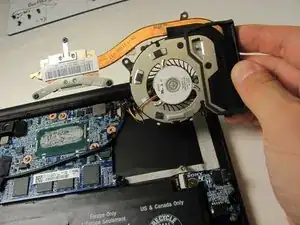

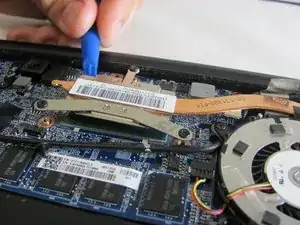

    • Use the Plastic Opening Tool to gently remove the heat sink and fan assembly from the computer.

    • Important: Follow the How to Apply Thermal Paste guide to replace the thermal paste before reassembling your device.

Заключение

To reassemble your device, follow these instructions in reverse order.

Автор

Marii

Участник c: 08/01/15

658 Репутация

Один комментарий

Could you also maybe do a tutorial on Sony Vaio Fit 13? http://www.laptoppartstore.com/replace--... Any luck figuring out how the fan may be detached and re-attached to the heatsink? Also, I notice a very specific type of taping... where can one procure those?

Abhishek D -
