Sony Smart Watch SW2 Display Assembly Replacement

Автор: Vincent Shiue
  • Комментарии: 4
Sony Smart Watch SW2 Display Assembly Replacement

Сложность

Easy

Шаги

4

Необходимое время

5 минут

Введение

In this guide we will be taking the Sony Smart Watch SW2 watch out of its housing to remove its screen in order to reach the interior components. This process will only require a small tool with a flat edge.

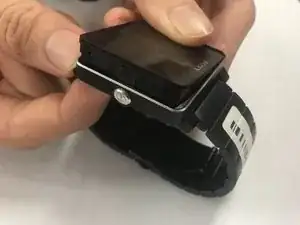

  1. vLBQCjSwSyL2jVDw

    • Detach the smart watch from the band by pushing on the back of the watch housing.

    • The power button may fall out once the smart watch is detached.

    • Set aside the power button and watch band as they are no longer needed for further disassembly.

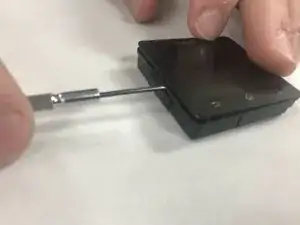

  2. ToHlbuQfWgpjnjUu

    • Use a plastic opening tool to carefully pry the LCD screen from the watch housing.

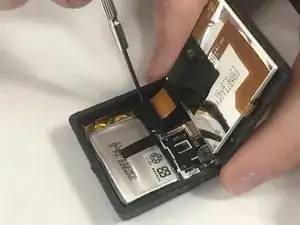

  3. iSoYlXyfXaYFkg1D

    • Use a plastic opening tool or spudger to lift the screen assembly press-fit connector free.

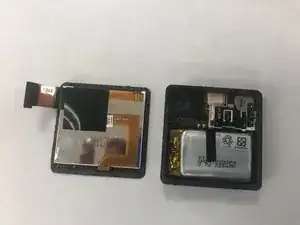

  4. 15lUnmZsfHQivGHt

    • Set aside the detached LCD screen to access the battery.

    How can i find New sw2 screen

    Eren Can Gelen -

    where can i find this lcd where can i find this lcd display

    Sherali Mahmudov -

    where can i buy this lcd give me a link thank you in advance

    Jerry Geolin -

Заключение

To reassemble your device, follow these steps in reverse order.
