Sony RMT-D197A Battery Contactor Repair

Автор: Ahmed Sultan
  • Комментарии: 1
Sony RMT-D197A Battery Contactor Repair

Сложность

Moderate

Шаги

7

Необходимое время

30 - 40 минут

Введение

  1. qwBHfw2DrtQBKJWJ
    qwBHfw2DrtQBKJWJ
    tEPkd5RB12iYpQXm

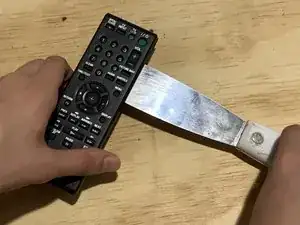

    • Place the remote on a solid, sturdy surface.

    • Use a putty knife to gently pry open the remote.

  2. RyNegNZjyNPFv5th
    RyNegNZjyNPFv5th
    IvIVRxHcfx3BFNU5

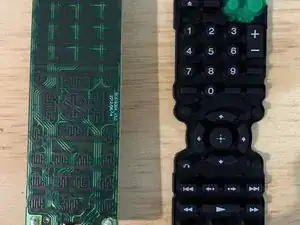

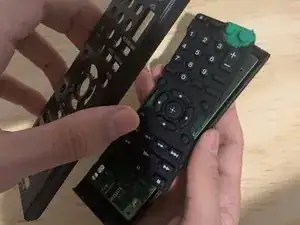

    • Remove the front panel from the remote.

  3. FLmmmnDyQHTpY6VW

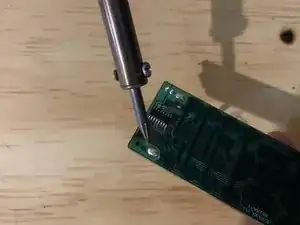

    • Wear safety glasses and use caution when handling a hot soldering iron.

    • Use the soldering iron to gently desolder the damaged battery contactor.

    • Keep in mind the battery contactor can easily break so make sure to be gentle with the soldering iron.

  4. gVbVMDAOPidUJLLC
    gVbVMDAOPidUJLLC
    5W1Y6wkABI2JdtBV

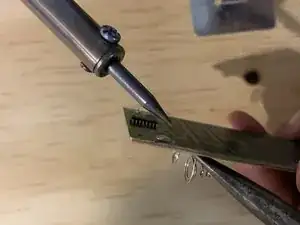

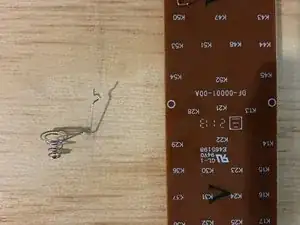

    • Use a pair of tweezers to remove the spring from the contactor.

  5. CdjpPWHCMpClodgG

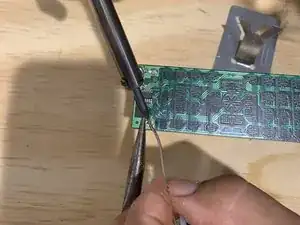

    • Use the soldering iron to melt solder onto the empty hole.

    • Make sure to accurately place the spring into the correct position.

  6. qWywvElw1JhQhXBO
    qWywvElw1JhQhXBO
    qNEkuV3UgLOeFPHh

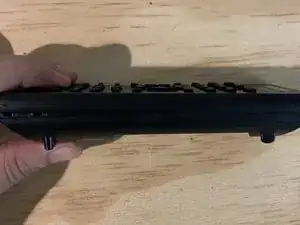

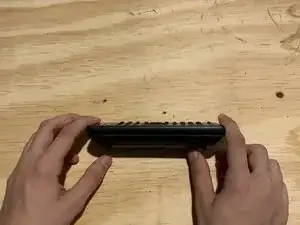

    • Reattach the two halves of the remote.

  7. AB5WCFnSVxXmuGoO

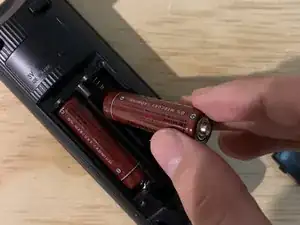

    • Insert batteries and try out your remote.

Автор

Ahmed Sultan

Участник c: 10/09/21

193 Репутация

Один комментарий

As the remote is already disassembled, I took the opportunity to clean the contacts for all the buttons using alcohol.
