Sony Ericsson W200i LCD Screen Replacement

Slide the battery cover up and off the phone.

Pop the battery out of its slot by lifting it up.

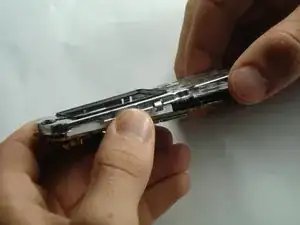

Insert the plastic opening tool in between the front case and the back case.

Apply downward pressure to make the case lift upwards, thus popping the front case off.

Remove the 4 screws in the corners of the front of the phone using a T6 screwdriver.

There is a black tab in the top left corner holding the core in place.

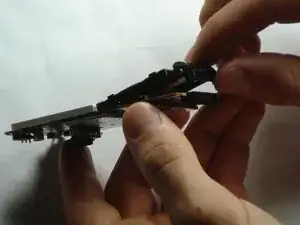

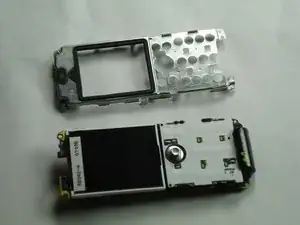

Remove the core by pulling straight up to prevent breaking the tab.

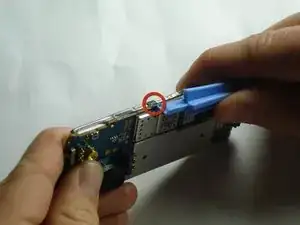

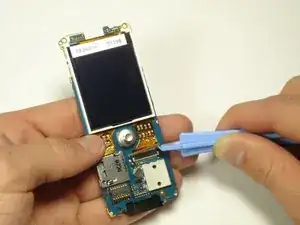

Undo the metal clip on each side of the core using the plastic opening tool.

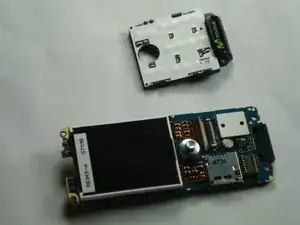

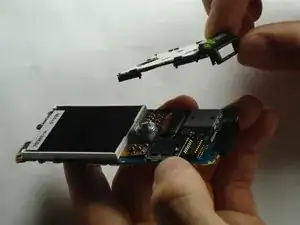

Gently pull the white keyboard and charging port away from the motherboard and off the phone.

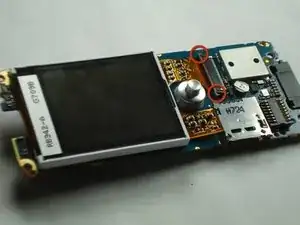

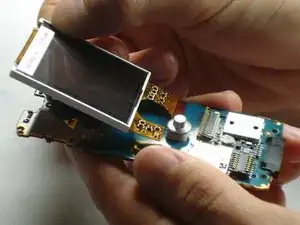

Undo the grey clip that holds the LCD ribbon in place by loosening one side of the clip with the plastic opening tool, then gently separate the other side of the clip from the holder.
