Sony Dream Machine Speaker Replacement

Автор: Skylar Caststeel
  • Комментарии: 0
Sony Dream Machine Speaker Replacement

Сложность

Easy

Шаги

6

Необходимое время

7 - 15 минут

Введение

Replace a broken speaker in the Sony Dream Machine alarm clock.

Инструменты

Запчасти

  1. vjstgqSdouw5AqqH
    vjstgqSdouw5AqqH
    mYZmCO6jCMmHkBGL

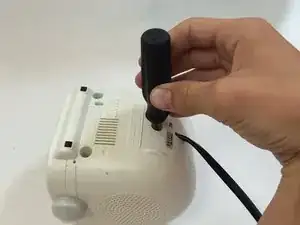

    • Unscrew the screws located here with a Phillips head screwdriver.

  2. PKEEaqC3yZBOlgds

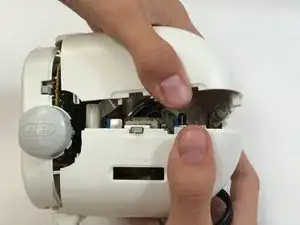

    • Open the alarm's casing.

  3. WfAUc2oBp6DsGGvU
    WfAUc2oBp6DsGGvU
    L1brQalfOG1HX5hh
    YrGvbQmnUCmv5pEC

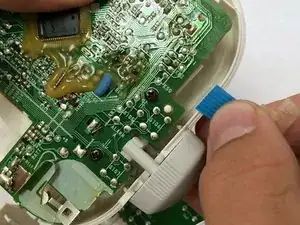

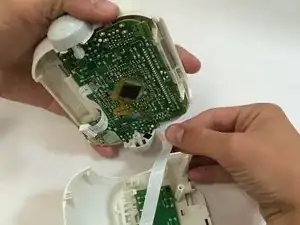

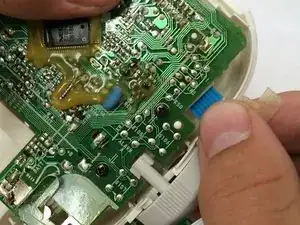

    • For the product's safety, remove the ribbon cable shown.

  4. A4isK4IjEt2TFxHL

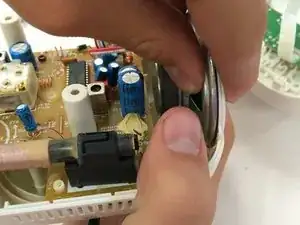

    • Locate the speaker and desolder the contact points.

  5. HoqgjNVFXRqqE3OM

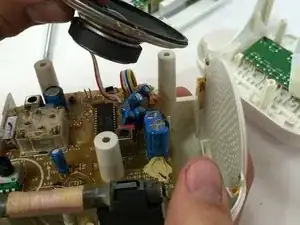

    • Remove the broken speaker.

  6. yPvktUVxruhpLDeM

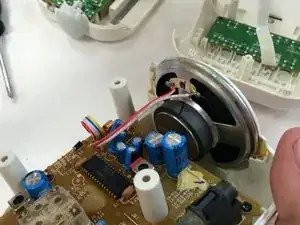

    • Place the new speaker in the slot and resolder the contact ports.

Заключение

To reassemble your device, follow these instructions in reverse order.
