Sony DVP-NS325 Power Cable Replacement

Автор: isaiah davila
  • Комментарии: 0
Sony DVP-NS325 Power Cable Replacement

Сложность

Moderate

Шаги

7

Необходимое время

5 - 10 минут

Введение

The cable is the power supply for the DVD player it is used to give power to every component and is an external cord that stays outside the DVD Player. Make sure to unplug the cable before beginning.

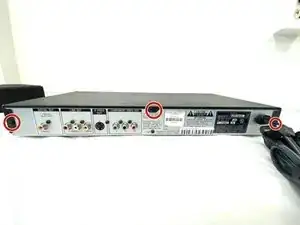

  1. iNKnRhQwmm5U3xyU
    iNKnRhQwmm5U3xyU

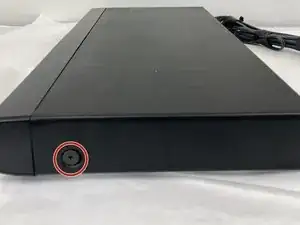

    gYIUODX2rqitdq1e

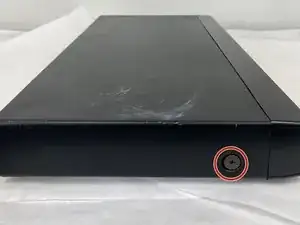

    tVX2knh6Jr4JAbbh

    • Use a Phillips screwdriver to unscrew the five screws.

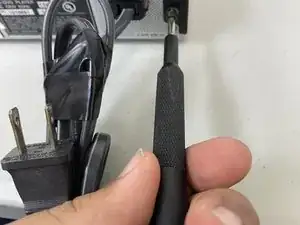

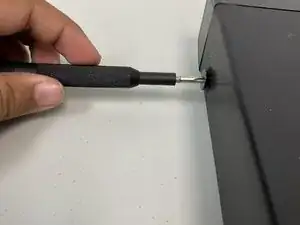

  2. qtucIPw1pJyMJP5q
    qtucIPw1pJyMJP5q
    Ia5V4PwuNjqtKAga

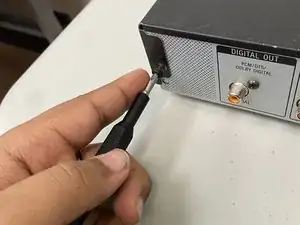

    Zvl3RBLDUFsAt5tP

    • Use the Philips screwdriver to remove the screws located on the sides and the back.

    • Not shown are the right side screw and the middle screw.

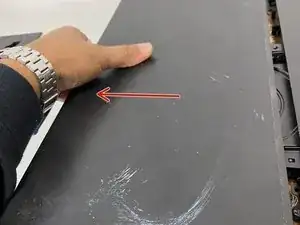

  3. TMDEQ3Iyru1fWT1v

    • Use a spudger to separate the case from the chassis.

    • Remove the case.

  4. EExMJPqyvhCpthDi

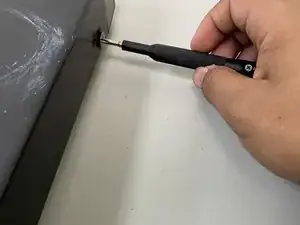

    EExMJPqyvhCpthDi
    LsiUOF3Dcah1dFwS

    • Unscrew all screws using a Phillips screwdriver removing the outer case to access the power cable.

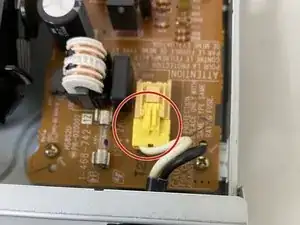

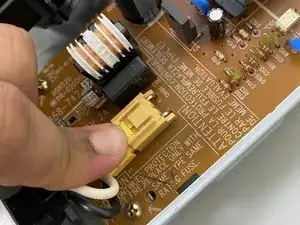

  5. naDjrlqPA6FLUOBX
    naDjrlqPA6FLUOBX
    FaZavusWauv65Nq4

    • Using a finger, press down on the clip to remove the connector for the cable.

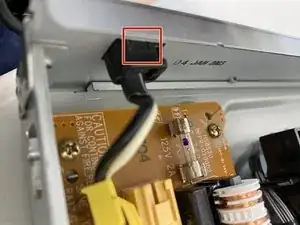

  6. tSGvqGjWkSIkUwbq

    • Using two fingers, press in both the top and bottom clips to release the holder for the power cable to remove the cable completely.

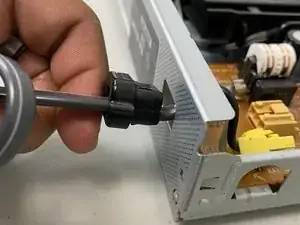

  7. vjqGacHWITE4FdoG

    • Pull the cable out of the case to fully replace the cable.

Заключение

To reassemble your device, follow these instructions in reverse order.
