Sony Alpha A3000 shutter button Replacement

Автор: Andrzej Majchrzak
  • Комментарии: 3
Sony Alpha A3000 shutter button Replacement

Сложность

Moderate

Шаги

16

Необходимое время

2 часов

Введение

My camera was auto focusing only after power-up, all menu buttons were not active (there was a workaround of switching camera mode e.g. A->P to enter the main menu). Taking photos was still possible.

That were results of stucked first action circuit of the shutter button: camera was constantly detecting slight press of the button leading to that strange behaviour.

Hopefully I found the microswitch replacement at mouser. Costs only ~2Euro and is fully compatible or even same as used in factory.

Ifixit helped me with disassembly, now I'm paying off describing this guide.

Инструменты

Запчасти

  1. TJELFvgUORKCjE1a
    TJELFvgUORKCjE1a
    Q5fFP1KeGRJEvscy
    UVCGfZorLrAwBbXD

    • Remove the seven highlighted screws shown here.

    • Screws are teeny tiny, don't lose them!

  2. Oj1Y6FfI2IFUjThW
    Oj1Y6FfI2IFUjThW
    tJgLEm5l6sB6C1Sr

    • Remove this final screw from the memory card compartment.

    • Remove the chassis by pulling the back cover away from the camera.

    • Be careful not to damage any of the delicate ribbon cables when removing the chassis.

  3. aIABiCBKEleSmBf4
    aIABiCBKEleSmBf4
    kdXCiZTDUqqUFCTL

    • Gently but forcefully lift up on the parallel cable connecting the two halves of the camera.

  4. krk2xUccnWf5BSTH
    krk2xUccnWf5BSTH
    xA35JHCeHKbIkBL5

    • After removing the backing from the camera. Remove the two final screws in the memory compartment area.

    • Detach the facing for the memory dock.

  5. dXS1eZydlCXDFj5e
    dXS1eZydlCXDFj5e
    yAQ3LiN31qffCK6X

    • Remove the eight screws securing the mount for the flash device.

  6. mVnSiPfVHcslKalN
    mVnSiPfVHcslKalN
    pdXPfSsBYuPNPKFo

    • Remove the three remaining screws holding in the protective metal casing.

  7. VPumEdrKnxbKecIF

    • Remove the metal casing.

  8. on5mtuVEihHIYxOg

    • Remove three screws holding down the motherboard .

  9. NNsUB11kwq16wWBw
    NNsUB11kwq16wWBw
    vISr6YELpeFqppbk

    • Detach the nine serial cables connecting it to the camera body.

  10. ERqBgvxXiITRTHXm

    • Finally remove the motherboard from the casing.

  11. N5epAb3NqTrIMknS

    • shutter button placement...

  12. ONyRQlSXmXgU1Z1J
    ONyRQlSXmXgU1Z1J
    B2A6vGFQlVMlZXAw

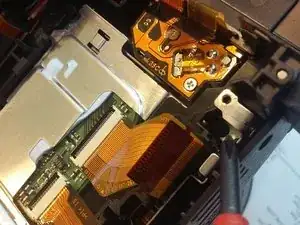

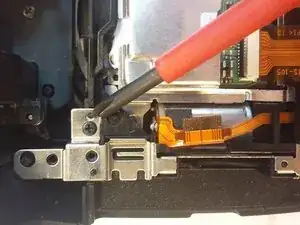

    • Remove two screws holding plastic/metal frame.

  13. YclN6wux5HkNgMiu
    YclN6wux5HkNgMiu
    NFohgofPIejwiR34

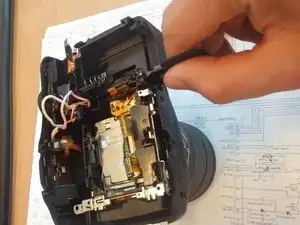

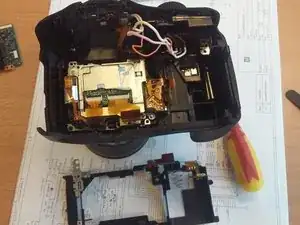

    • Holding the battery door gently lift the frame up .

  14. bNJZaP3LOcY6fqNf
    bNJZaP3LOcY6fqNf
    SlABb2QcXbSIkZQe

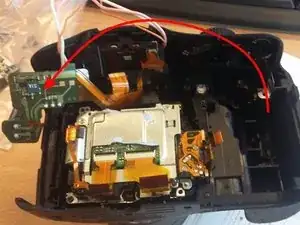

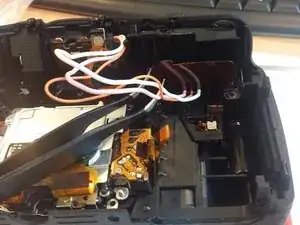

    • Pull out the capacitor and move the capacitor board (flexible) to the left to clear the way for future steps.

  15. cTYHrntTsYRW5Yey
    cTYHrntTsYRW5Yey
    Zbk3AybQihXFBSdO
    T1mDUf4DQqBkhjCo

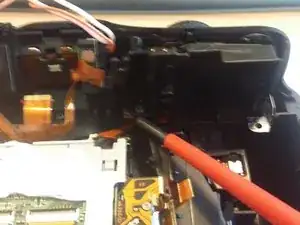

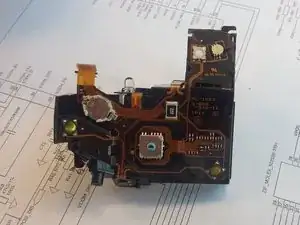

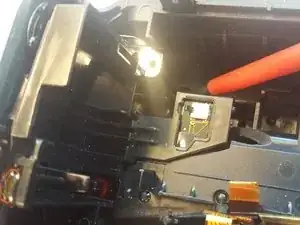

    • Remove two screws mounting plastic buttons module.

    • Remove the module.

  16. VAPeeHaMiN4udGQj
    VAPeeHaMiN4udGQj
    6sL1ZnEPIVvAY3uC
    mpEHx2KlR2mDyMIE

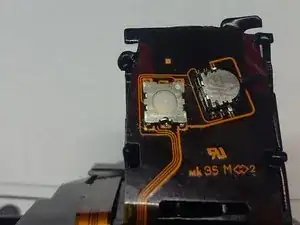

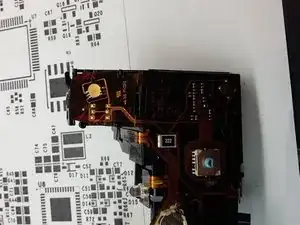

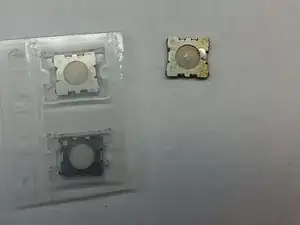

    • Replace the ALPS SKSDPCE010 microswitch. Look out for the correct allignment and orientation (first pin marked with a dot).

Заключение

To reassemble your device, follow these instructions in reverse order.
