Skil 88 Motor Housing Replacement

Автор: Matt
  • Комментарии: 0
Skil 88 Motor Housing Replacement

Сложность

Moderate

Шаги

8

Необходимое время

10 минут

Введение

After deciding that the motor is functional and the power is indeed reaching the motor in the trigger housing, the motor housing will have to be removed and maybe replaced.

  1. NxrynQYZaTXRFsCp

    • On the front of the drill, remove the three 2" flathead screws connecting the front housing to the rear housing.

  2. VvXOFoAke5Mdj3qj
    VvXOFoAke5Mdj3qj
    vaATsNhu5FrnjVv1

    • Pull the front housing apart from the rear.

    • The motor and gears might fall out when you are pulling it apart.

  3. 13MrTdaGcalGiuGg
    13MrTdaGcalGiuGg
    wGjHRBcVEfCWBIHE

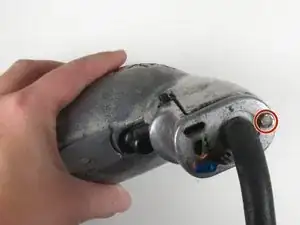

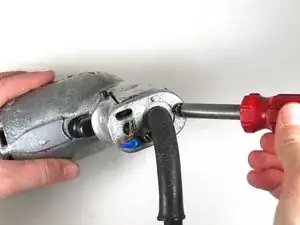

    • Use the socket wrench to remove the 0.5" length screw from the bottom of the handle.

  4. TER1nMhZIfYWnlrq
    TER1nMhZIfYWnlrq
    mn6wGx3MQu1VKEdY
    OORXnsPcFOKAi4hv

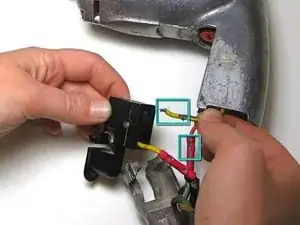

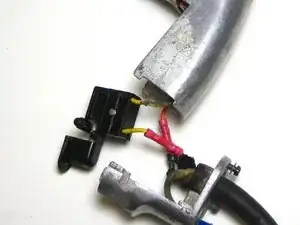

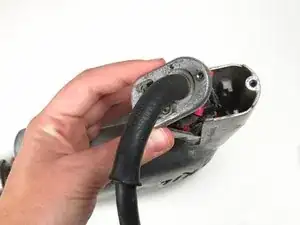

    • Separate the cord from the handle.

  5. fWXjXgkBFMXK3kGU
    fWXjXgkBFMXK3kGU
    RNFiu5YAbqYmvyTT

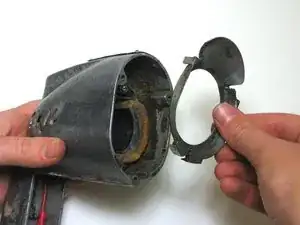

    • Remove the inner divider.

  6. JfGhMCoEUPAJAoHK

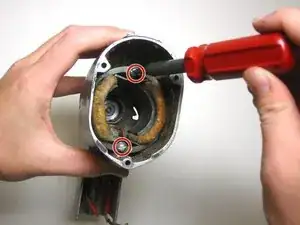

    • Remove the two 1" flathead screws located at the top and bottom of the motor housing.

  7. VKYQlrdRmaeNqBmc
    VKYQlrdRmaeNqBmc
    CZZHJyJCvWjgEuUf

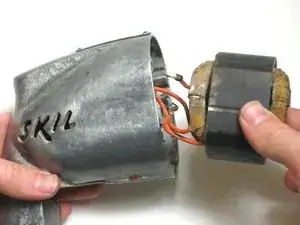

    • Pull the motor housing out.

    • The wires from the trigger housing should follow the motor housing.

  8. bVF1qXjpSFocGoDB
    bVF1qXjpSFocGoDB
    2aUeJOcBJ2PYc3RS

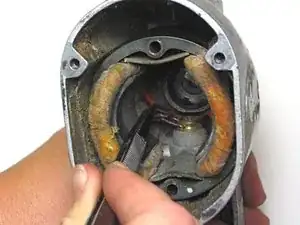

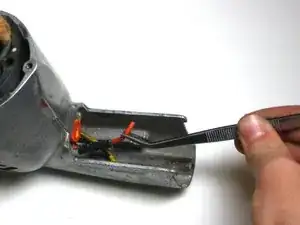

    • After you have placed the motor housing back into the drill during reassembly, thread the wires down to the handle using tweezers.

    • Plug the forked wire into the socket at the back of the motor housing using tweezers.

Заключение

To continue reassembly, simply follow the guide backwards starting at step 2.
