Shop-Vac MC150A Power Unit Assembly Replacement

Автор: Ngunlian
  • Комментарии: 1
Shop-Vac MC150A Power Unit Assembly Replacement

Сложность

Moderate

Шаги

4

Необходимое время

5 - 10 минут

Введение

This guide will show you how to remove and replace the power unit assembly for the MC150A Shop-Vac.

Инструменты

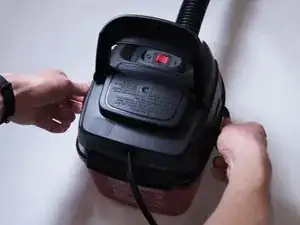

  1. OPBma6yWlSNVw4dn

    • Before you begin, make sure to switch off the device and unplug it from the outlet.

    • Unlatch the two side clips securing the power unit assembly to the tank.

    • Remove the power unit assembly from the tank assembly.

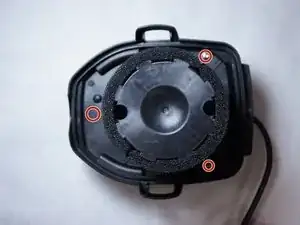

  2. WGqBV1MxvMyjvNDF
    WGqBV1MxvMyjvNDF

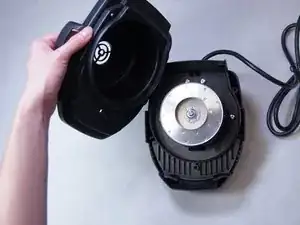

    ESj3QThAQDhayrYp

    • Use a 3.5 mm hex key to remove the three screws securing the top cover.

    • Remove the top cover.

  3. 5U1tBNWKVhAnlsHk

    • Use a 3.5 mm hex key to remove the four screws securing the power unit assembly.

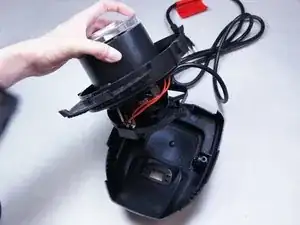

  4. GRMRYicVp5Te3pJF

    • Separate the power unit assembly from the cover.

    Whereabout did you buy the replacement motor?

    HughP -

Заключение

To reassemble your device, follow these instructions in reverse order.
