Shop-Vac MC150A Power Switch Replacement

Автор: Ngunlian
  • Комментарии: 3
Shop-Vac MC150A Power Switch Replacement

Сложность

Easy

Шаги

6

Необходимое время

15 минут

Введение

Follow this guide to remove and replace the power switch on the MC150A Shop-Vac.

  1. OPBma6yWlSNVw4dn

    • Before you begin, make sure to switch off the device and unplug it from the outlet.

    • Unlatch the two side clips securing the power unit assembly to the tank.

    • Remove the power unit assembly from the tank assembly.

  2. WGqBV1MxvMyjvNDF
    WGqBV1MxvMyjvNDF
    ESj3QThAQDhayrYp

    • Use a 3.5 mm hex key to remove the three screws securing the top cover.

    • Remove the top cover.

  3. 5U1tBNWKVhAnlsHk

    • Use a 3.5 mm hex key to remove the four screws securing the power unit assembly.

  4. GRMRYicVp5Te3pJF

    • Separate the power unit assembly from the cover.

    Whereabout did you buy the replacement motor?

    HughP -

  5. LWk5B321REESSo2m
    LWk5B321REESSo2m
    hUDvo1RKDNWUQcCJ
    x4MG2vGeBOW4Nwxf

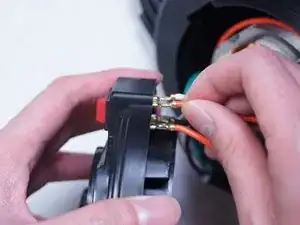

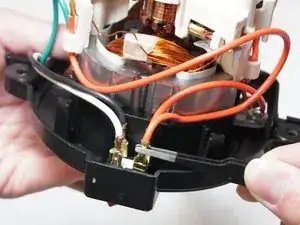

    • Pull out and disconnect the four spade connectors from the switch module.

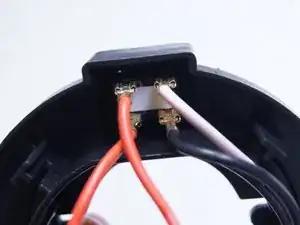

    • During reassembly, use the last image as a reference for how to connect the wires.

    What wire goes were

    Dylan -

  6. 2d1hQ1GPmZRghUky

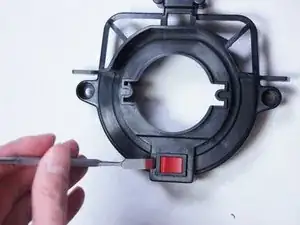

    • Use a spudger to pry up and remove the red switch from the housing.

    what wire goes where

    Dylan -

Заключение

To reassemble your device, follow these instructions in reverse order.
