Sega Genesis Outer Case Replacement

Автор: Erik Bjornstrom
  • Комментарии: 0
Sega Genesis Outer Case Replacement

Сложность

Moderate

Шаги

6

Необходимое время

10 минут

Введение

This repair guide will take you through all the steps for removing the outer case of the Sega Genesis.

Инструменты

  1. lW54ikSVnq4KmSq3

    • Remove the six screws from the underside of the console with a Phillips #1 screwdriver.

  2. MLFiOdPgBoRqk1KA

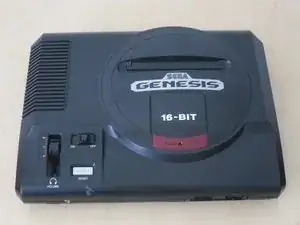

    • Flip the Sega Genesis upright.

  3. HKXYLvGvcYhQnPuf

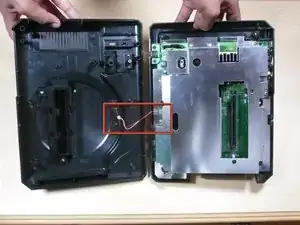

    • Gently lift the top casing.

    • Note: the case will be connected to the main board by LED wires.

  4. LcxoJ4RWNK5fHMVY

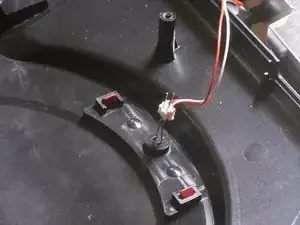

    • Bend out the LED leads into vertical positions.

  5. TFQoTpYHAYOpPmnf

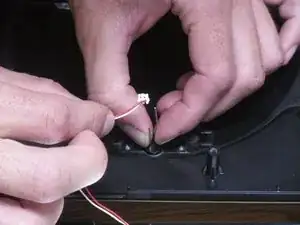

    • Slide the LED wire apparatus off the lead pins.

    • Note: observe which color wire corresponds with which length of pin.

  6. yjpZlChAPxVmPjZy

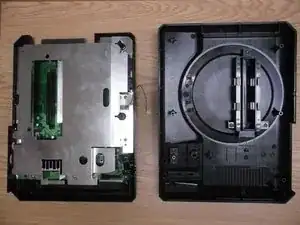

    • Separate the main board from the outer case.

Заключение

To reassemble your device, follow these instructions in reverse order.
