Scuf Reflex Paddles Replacement

Сложность

Very easy

Шаги

2

Необходимое время

1 - 5 минут

Введение

Use this guide to replace or remove the paddles on your Scuf Reflex controller.

  1. gFJAZbGumeODZNYH
    gFJAZbGumeODZNYH
    wSLHHTiTVOrKxmAR
    NEPLpavglGGAHZOl

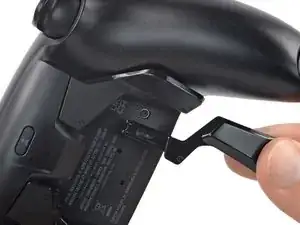

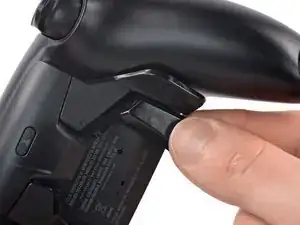

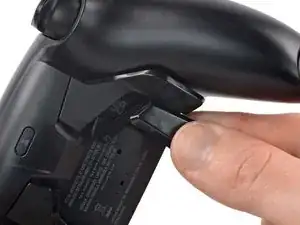

    • The removal procedure for the left and right back paddles is the same.

    • Always remove the inner paddle first. You‘ll damage the controller if you try to remove the outer paddle with the inner one installed.

    • Firmly pull the inner paddle straight out of its slot.

  2. NWJ5vPEQSRDpWgbQ
    NWJ5vPEQSRDpWgbQ
    ZMkNxmwE5uWZWOxp
    Uq6tW3chD5rO3AqQ

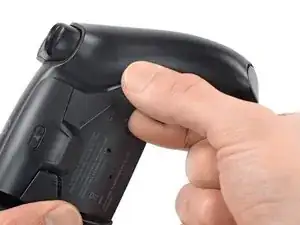

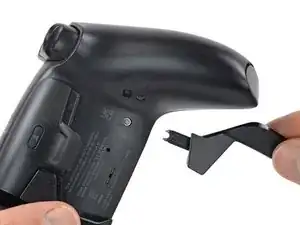

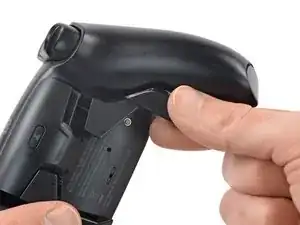

    • Firmly pull the outer paddle straight out of its slot.

    • To reinstall the paddles, firmly push them back into their slots until they lock in place.

Заключение

To reassemble your device, follow the instructions in reverse order.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
