Scuf Instinct Pro Thumbstick Rings Replacement

Автор: Spencer Day
  • Комментарии: 0
Scuf Instinct Pro Thumbstick Rings Replacement

Сложность

Easy

Шаги

4

Необходимое время

2 - 3 минут

Введение

Follow this guide to replace. change, or upgrade the thumbstick rings on your Scuf Instinct Pro Xbox controller.

Инструменты

  1. KobjyvI3f6PYkCKP

    • Unplug all cables from your controller before starting.

    • Completely power off your controller.

  2. grHqonDk3VFuVbNF
    grHqonDk3VFuVbNF
    wouLFNuxACh2S1Wf
    n2PXvosWOaAsS5gZ

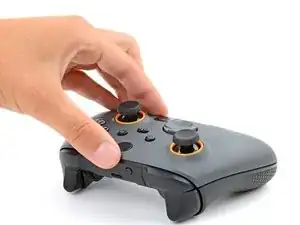

    • Magnets secure the faceplace to the midframe.

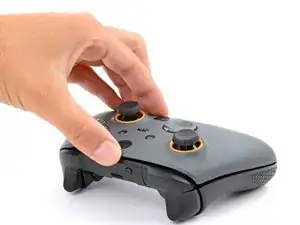

    • Lift the top edge of the faceplate to release the magnets securing it.

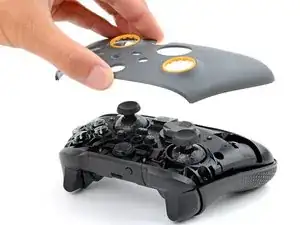

    • Remove the faceplate.

  3. qD5EplDPUJgE6JKt
    qD5EplDPUJgE6JKt
    DQKZ2xOcJGT2QsYR
    Jgpf42idiR1PZWZk

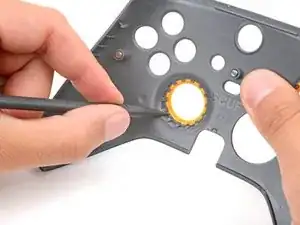

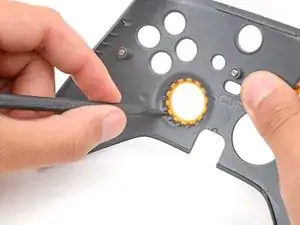

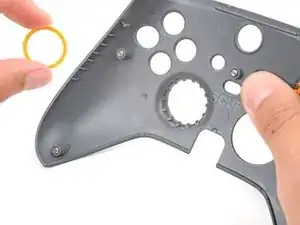

    • Use the point of a spudger to push out and unclip the joystick ring from the faceplate.

  4. ejWTOYQNNtBnrCWD

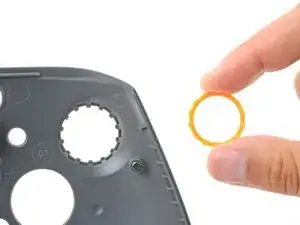

    • Use the same process to remove the other joystick ring.

Заключение

To reassemble your device, follow these instructions in reverse order.
