Corded Reciprocating Saw Dexter 900W - 900RPS Carbon Replacement

Автор: Céline Chemineau
  • Комментарии: 0
Corded Reciprocating Saw Dexter 900W - 900RPS Carbon Replacement

Сложность

Easy

Шаги

9

Необходимое время

6 минут

Введение

This tutorial shows you the change of only one carbon, to change the second you just have to follow the same method.

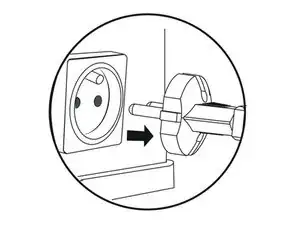

  1. IbecEC3xMPxmMIKc

    • Before you begin, remember to disconnect the mains plug.

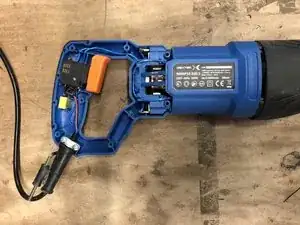

  2. CHhOHTnQgwZbQaam
    CHhOHTnQgwZbQaam
    cgvE1ZAQlKi6JZnO

    • Unscrew the screws of the hull to open it.

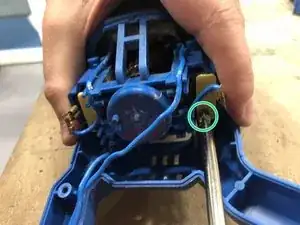

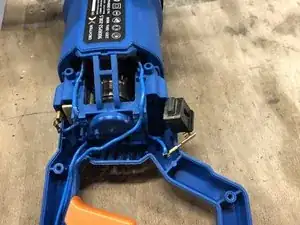

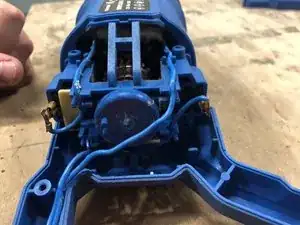

  3. awdZQN6KqHSkgU2O
    awdZQN6KqHSkgU2O
    LOFlvyA5goEISbnX
    T4aMHnRUWaA3FxBk

    • Using a screwdriver, unscrew the place where the carbon is located in order to extract it.

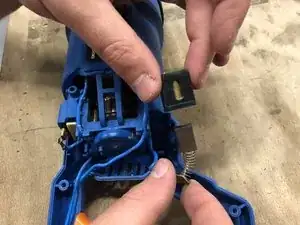

  4. nAZvwAm4SmvQi1pe

    • Take the carbon out of the carbon holder.

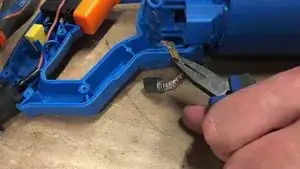

  5. With pliers disconnect the carbon.

    • With pliers disconnect the carbon.

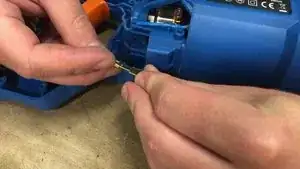

  6. Then reconnect the new carbon.

    • Then reconnect the new carbon.

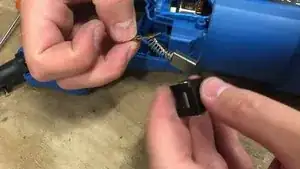

  7. Replace it in the carbon holder.

    • Replace it in the carbon holder.

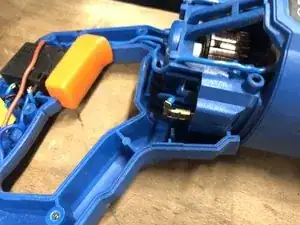

  8. AXqMfpWBR3KcPBfs

    • And finally put it back in its housing.

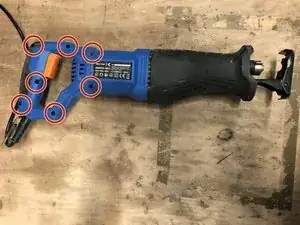

  9. oDaa2eUK4QKUIOWA
    oDaa2eUK4QKUIOWA
    CQeH2Glxg2Ox5CBH

    • Before closing, check that no cable is blocked and that each part is in its place.

    • Then retighten the hull screws.

Заключение

To reassemble perform steps in reverse.
