Dexter 750W Switch Replacement Corded Jigsaw

Автор: Céline Chemineau
  • Комментарии: 0
Dexter 750W Switch Replacement Corded Jigsaw

Сложность

Easy

Шаги

10

Необходимое время

5 минут

Введение

this guide will show you how to replace the switch

  1. MtVLJvLoBqgWIlsB

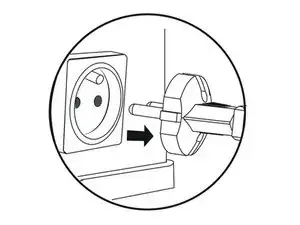

    • Before you begin, remember to disconnect the mains plug.

  2. bRXQxsRnjNOcrPMH

    • Remove the vacuum adapter from the back of the device.

  3. X1NqInnpYDnlRkMF
    X1NqInnpYDnlRkMF
    nAKlVxtngPVZpihV

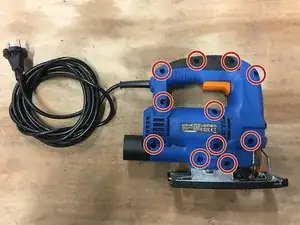

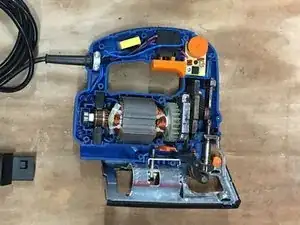

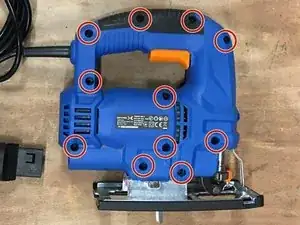

    • Using a screwdriver or screwdriver, unscrew and open the device.

    • Unlock the tray by lifting the lever.

  4. UlHSuTY1XtwgYglO

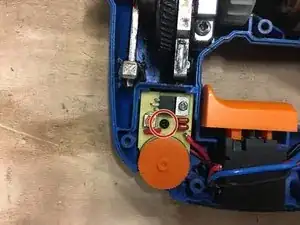

    • Remove the black screw, in order to remove the knob.

  5. Using a screwdriver, pry to be able to recover the wheel.

    • Using a screwdriver, pry to be able to recover the wheel.

  6. oSXeYIAisXUSWq6Y

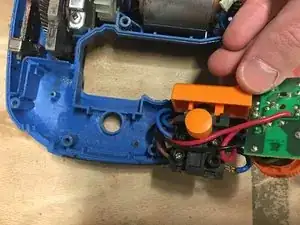

    • Turn over the switch, to be able to access the screw.

  7. dD4aBCencBLLH4GH

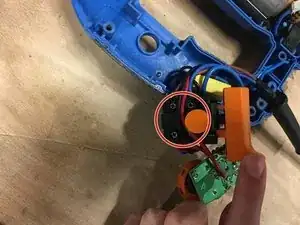

    • Remove the four screws to be able to unlock the system and remove the wires.

  8. TRw3Pa4ELD5TosPc
    TRw3Pa4ELD5TosPc
    qBCdxLXODDoXifYO

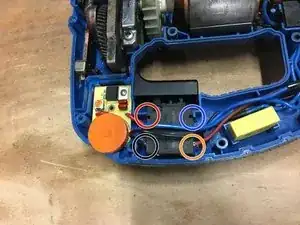

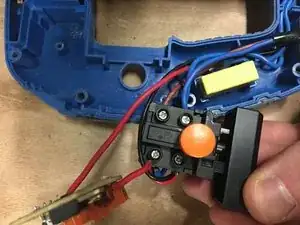

    • Replace the new switch and reseat the wires. Be careful to put each wire back in its place.

    • Following the picture, the red wire is at the top left, the blue wire at the top right, the blue and black wire at the bottom left, and the brown wire at the bottom right.

    • The cables must be placed below so as not to interfere with the closure and must not protrude.

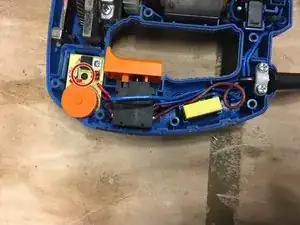

  9. ApyGiVYp2QqFCISF

    • Put the wheel back in its housing and screw it back on.

  10. KIVZXMUDDGDpQuH2

    • Close and screw the device.

Заключение

follow guide through or in reverse to reassemble
