Dexter 750W Corded Jigsaw Motor Replacement

Автор: Céline Chemineau
  • Комментарии: 0
Dexter 750W Corded Jigsaw Motor Replacement

Сложность

Easy

Шаги

16

Необходимое время

5 минут

Введение

This guide will show you how to replace your motor

  1. OeKcMMRsECOh2WIK

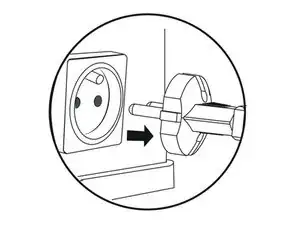

    • Before you begin, remember to disconnect the mains plug.

  2. Q52mFAulpkMU431K

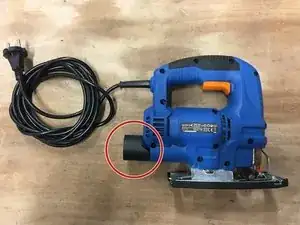

    • Remove the vacuum adapter from the back of the device.

  3. XSSRKNVYCe4FjQOp
    XSSRKNVYCe4FjQOp

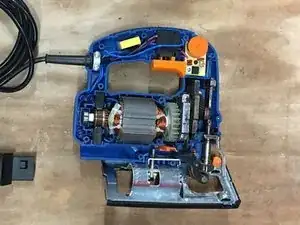

    6Yyt5jwRHCkN5QDY

    • Using a screwdriver or screwdriver, unscrew and open the device.

    • Unlock the tray by lifting the lever.

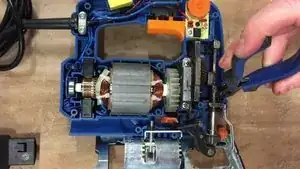

  4. Use needle nose pliers and remove the clip located next to the blade holder.

    • Use needle nose pliers and remove the clip located next to the blade holder.

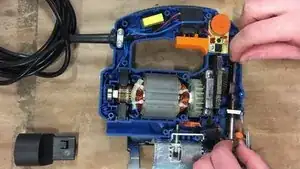

  5. Remove the blade holder, keeping the slider at the end of the holder.

    • Remove the blade holder, keeping the slider at the end of the holder.

  6. Z2K1SfTSieLG3T1b

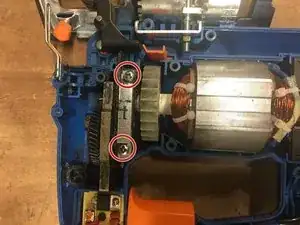

    • Unscrew the two screws and set them aside.

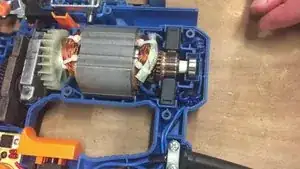

  7. Remove the two carbons located next to the stator.

    • Remove the two carbons located next to the stator.

  8. Lift the stator, then lever out the motor.

    • Lift the stator, then lever out the motor.

  9. vfuiGp3Ofm1ZEVb6

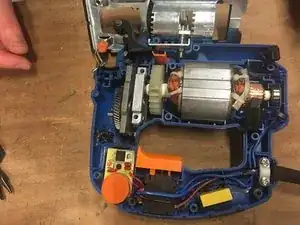

    • Put the new motor back in its place.

  10. GkDQJCZh3dRw3ZiU
    GkDQJCZh3dRw3ZiU
    ReLHErBdnHpOnDwX

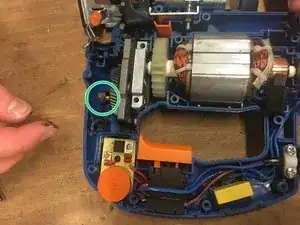

    • Collect the end cap on the old engine.

    • Put it back on the new motor.

    • Put some grease on the tip.

  11. Rbb6ZXHWbMwC24ZX

    • Replace the two screws to stabilize the motor.

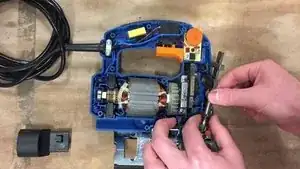

  12. Return the blade holder to its location

    • Return the blade holder to its location

    • Make sure you put each piece in its place.

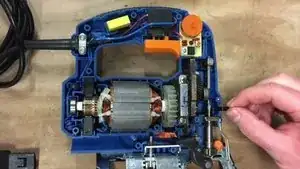

  13. Replace the staple in the same location. The curved side of the staple should go to the rounded side of the bracket.

    • Replace the staple in the same location. The curved side of the staple should go to the rounded side of the bracket.

    • Lubricate the whole

    • Make sure you put each piece in its place.

  14. K5HNmqNqndcJI1Be
    K5HNmqNqndcJI1Be
    gXlQq6pJS4l1BgDC

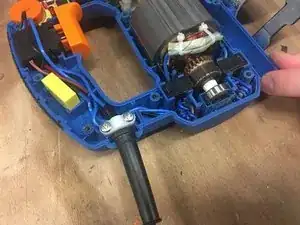

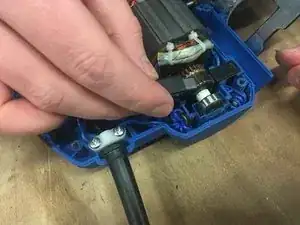

    • Put the coals back in their places.

  15. erSVU625NgZo1Xoh

    • Before closing, lubricate each gear.

  16. cjumfOd2rJksW1TH

    • Close and screw the device.

Заключение

follow guide through or in reverse to reassemble
