Dexter Corded Jigsaw 750W Charcoal Replacement

Автор: Céline Chemineau
  • Комментарии: 0
Dexter Corded Jigsaw 750W Charcoal Replacement

Сложность

Easy

Шаги

11

Необходимое время

5 минут

Введение

This tutorial shows you how to change one charcoal, to change the second you just have to follow the same method.

  1. wbwIU1YPXYVTVImu

    • Before you start, remember to disconnect the power plug.

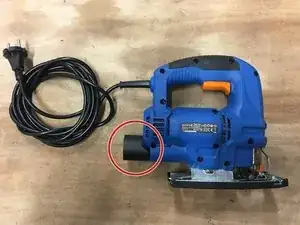

  2. ByVEPapZbkpMFYrh

    • Remove the vacuum adapter from the back of the unit.

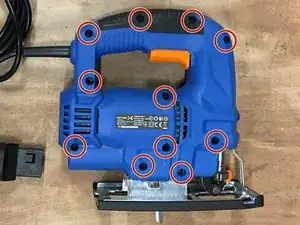

  3. UKRWRFrPgqVG2ftZ
    UKRWRFrPgqVG2ftZ
    IRoosBiKnwYUKKkC

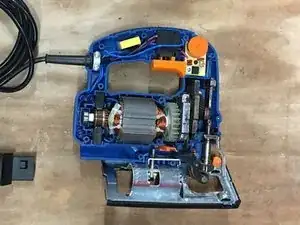

    • Using a screwdriver unscrew and open the unit.

    • Unlock the tray by lifting the lever.

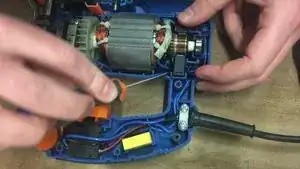

  4. Lever the coal out of its housing.

    • Lever the coal out of its housing.

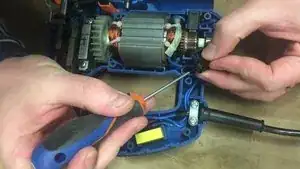

  5. Press lightly on the paw with a point to make it come out.

    • Press lightly on the paw with a point to make it come out.

    • Remove the coal by pressing on it.

  6. Lift the small tab from the inside by pressing on it, it should stick out slightly.

    • Lift the small tab from the inside by pressing on it, it should stick out slightly.

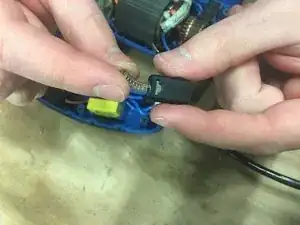

  7. Pj4tWWnVgTWGBlJU
    Pj4tWWnVgTWGBlJU

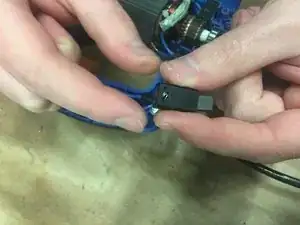

    VKjleEkoRqYpe2St

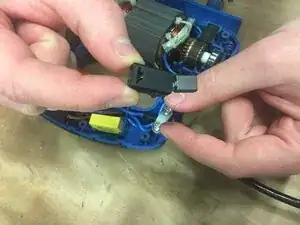

    nxdZCCKX5IVRiQ5H

    • Put the new coal in the coal holder.

    • Pull on the charcoal to make it stick out.

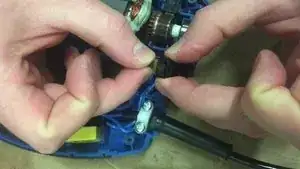

  8. Clip the tip into the charcoal holder and check that it fits properly.

    • Clip the tip into the charcoal holder and check that it fits properly.

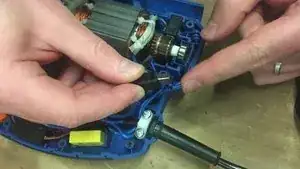

  9. Check the mechanism, so that everything slides perfectly.

    • Check the mechanism, so that everything slides perfectly.

  10. EBrCybMHFiW2KiQB
    EBrCybMHFiW2KiQB
    gUqkELLDMrHXDJZE

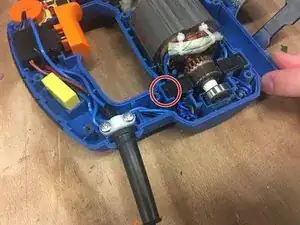

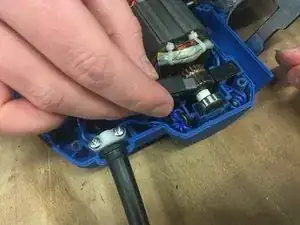

    • Compress the carbon holder and put it back in its housing.

    • The coal holder must be in the right direction, the small line is at the end.

  11. YCHlvTSJMStnI3PJ

    • Close and screw the unit back on.
