Dexter 750W Wired Jig Saw Base Plate Replacement

Автор: Céline Chemineau
  • Комментарии: 0
Dexter 750W Wired Jig Saw Base Plate Replacement

Сложность

Easy

Шаги

7

Необходимое время

5 минут

Введение

This guide will show you how to replace the base plate on your tool

  1. 3yv2WWXgmY54tgrI

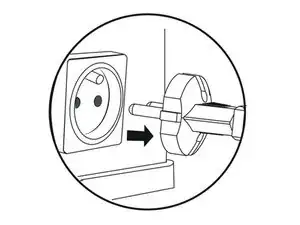

    • Before you begin, remember to disconnect the mains plug.

  2. 2Tucxe3fWhUkPTVQ

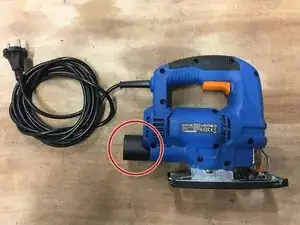

    • Remove the vacuum cleaner adapter on back of the device.

  3. UdTJQrbdbhar53SR
    UdTJQrbdbhar53SR
    tPYmnPXqDJwmULQq

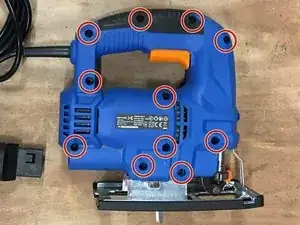

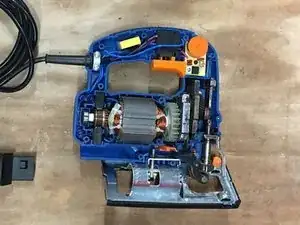

    • Using a screwdriver or screwdriver, unscrew and open the device.

    • Unlock the tray by lifting the lever.

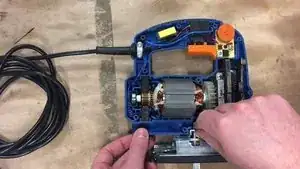

  4. Lift the lever with a clamp.

    • Lift the lever with a clamp.

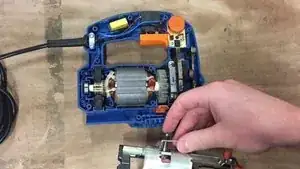

  5. Replace the new room in its location.

    • Replace the new room in its location.

    • Put each room back in its housing.

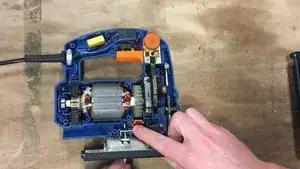

  6. Tighten until it's good. To help you, you can replace the lid of the machine to best adjust.

    • Tighten until it's good. To help you, you can replace the lid of the machine to best adjust.

  7. rfDMBQPTBOvAXDfx

    • Close and screw the device.

Заключение

The reassemble follow guide through
