Dexter 500W Corded Jigsaw - 500JS2-65.5 Replacement Blade Holder

Сложность

Easy

Шаги

6

Необходимое время

2 минут

Введение

This guide will show you how to replace the blade holder.

Инструменты

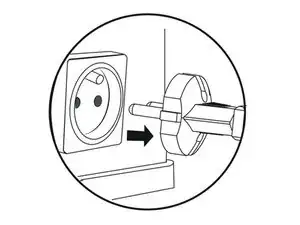

  1. AChZVoukEMBBH1W3

    • Before you begin, remember to disconnect the mains plug.

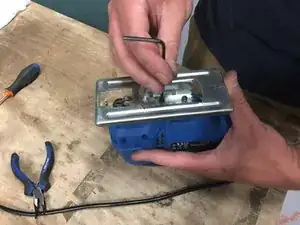

  2. XgrpvncVumYTVJ4J
    XgrpvncVumYTVJ4J
    NLXPgIaUIqwIBpmZ

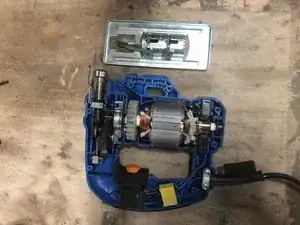

    jnIKdTdJsA1cSiMy

    • Start by unlocking the tray.

    • Then unscrew to open the machine.

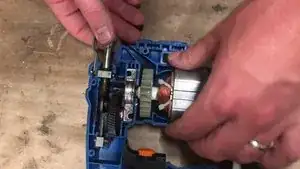

  3. Remove the blade holder, then remove the slider located at the end of the holder.

    • Remove the blade holder, then remove the slider located at the end of the holder.

    • Remember to keep the slider at the end of the support.

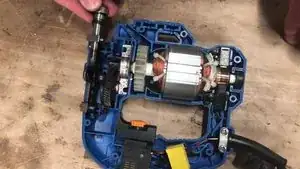

  4. Before replacing the new blade holder, re-grease, then replace it.

    • Before replacing the new blade holder, re-grease, then replace it.

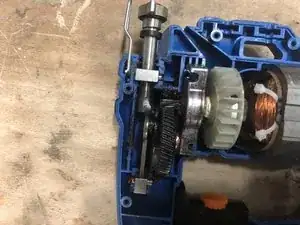

  5. 5Ohh1bbxjXS15kRn

    • Check that each piece is in its place before closing.

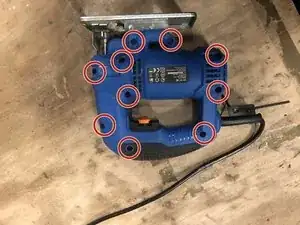

  6. KjSSPpWJYmi6JCLM
    KjSSPpWJYmi6JCLM
    gZKMwFT1tWQTBRn4

    • Replace the shell and then screw it back on.

    • Retighten the chainring nuts to finish.

Заключение

Follow the guide through to reassemble or in reverse
