Samsung T139 Camera Lens Replacement

Автор: Reagan May
  • Комментарии: 0
Samsung T139 Camera Lens Replacement

Сложность

Moderate

Шаги

6

Необходимое время

10 - 15 минут

Введение

If you are having problems with the camera on your Samsung T139, use this guide to replace it.

  1. gxubgCTUAhLSoCeY
    gxubgCTUAhLSoCeY
    VyEoyPEsZ1qLJgFt
    ZLcwFCJg5DXsWFUb

    • Power off your phone before beginning disassembly

    • Apply pressure to the back cover and slide towards the base

  2. SWEDBMYQusS1HNeO
    SWEDBMYQusS1HNeO
    vTaFdhB1GH6lFKDk

    • With a plastic opening tool, lift and remove the battery

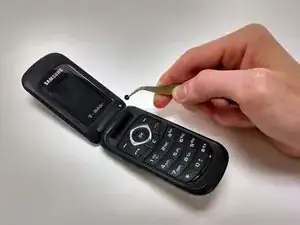

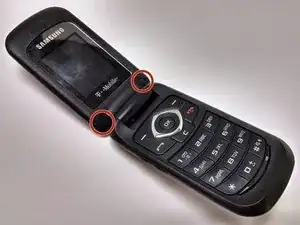

  3. SdJYuFGnsjnyV3EA
    SdJYuFGnsjnyV3EA
    PXHKr6aHGFuECDid

    • Using the tweezers, remove the two rubber soles that cover the panel screws

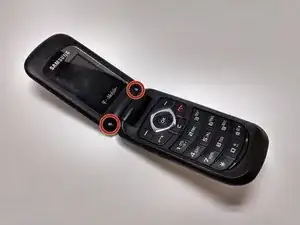

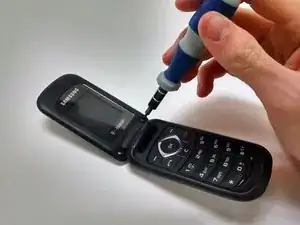

  4. W2wrLqmp4wMDdG1L
    W2wrLqmp4wMDdG1L
    IPtdSh2JMWq2MrF5

    • Remove two Phillips 1.0mm #0 screws

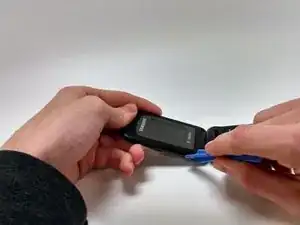

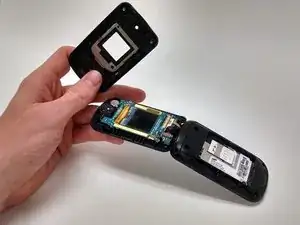

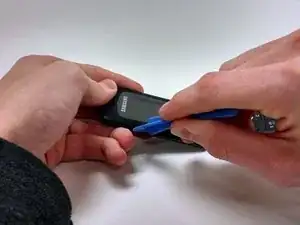

  5. 4AUYH1mcEQtbTJLF
    4AUYH1mcEQtbTJLF
    FRvOkjC2o3GmYHZ1
    bE2HjNo6uJUV2WCV

    • With the plastic opening tool, work around the face plate until it pops off

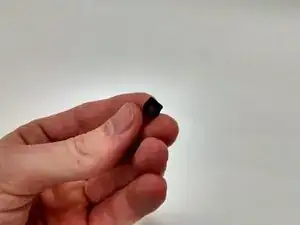

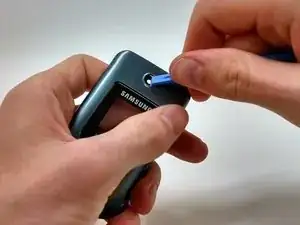

  6. BOnUyqlYJ1GRJg4K
    BOnUyqlYJ1GRJg4K
    ZUGn3EQkFWQPRP3v

    • Apply pressure to the lens, pushing it out the back

Заключение

To reassemble your device, follow these instructions in reverse order.
