Samsung SPH-A500 Logic Board Replacement

Автор: Nick Dominikovic
  • Комментарии: 0
Samsung SPH-A500 Logic Board Replacement

Сложность

Moderate

Шаги

8

Необходимое время

15 минут

Введение

This is a step by step guide on how to replace the Samsung SPH-A500 logic board.

Инструменты

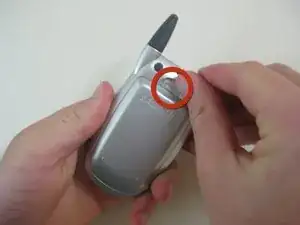

  1. LE64giygG2A13SHl

    • Turn phone over

    • Push the gray tab above the battery forward to remove the battery.

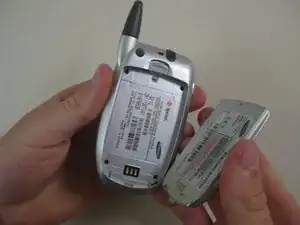

  2. XimQSQGnjyoZNRmn

    • Remove the battery from the phone, which will reveal four screws at the corners of the phone.

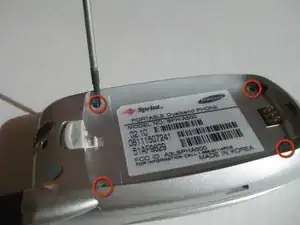

  3. cnVlJbbTwaFxrIFR

    • Remove all four screws using a small Philips screwdriver.

    • Note: The screws do not need to be completely removed from the case, as long as they are unscrewed.

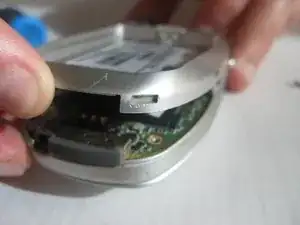

  4. CZUCeDAdNOLQI5c1

    • Remove back cover by carefully prying it open.

    • Note: Some force may be required.

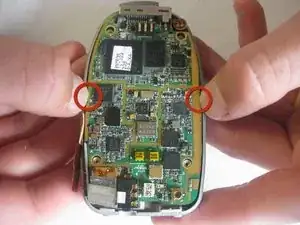

  5. nCjlrH2YsxdtMXvo

    • Pull the side tabs outward while simultaneously lifting up the circuit board.

    • Do not completely pull out the circuit board.

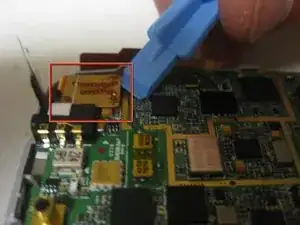

  6. OkMCNOHIN5MRFhKN

    • Look for the clip at the top right corner of the logic board.

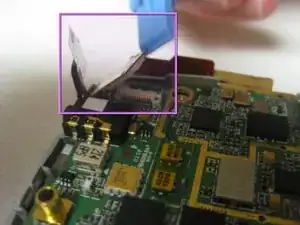

  7. YfBp5kHevoLpIKRA

    • Remove the clip from the logic board.

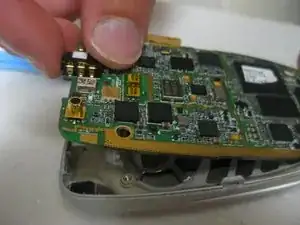

  8. fRM2C4PKTODdSROl

    • Remove the logic board.

    • Replace the broken logic board with a new one.

Заключение

To reassemble your device, follow these instructions in reverse order.
