Samsung S85 Screen Replacement

Автор: Avinash Salgam
  • Комментарии: 1
Samsung S85 Screen Replacement

Сложность

Moderate

Шаги

4

Необходимое время

15 минут

Введение

This guide will explain how to successfully remove the screen underneath the outside shell and on top of the circuit board.

  1. YPeJaUQNWmrLsL6W
    YPeJaUQNWmrLsL6W
    16Z1XOyB3cjURGLk
    nyZNpldOjZf6QCQr

    • Remove 4 screws from bottom of camera

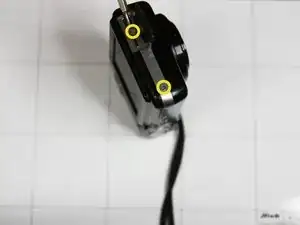

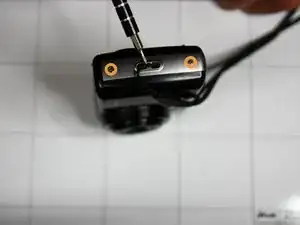

    • Remove 2 screws from side of camera

    • Remove 2 screws from side of camera

    • Place Screws on magnetic surface or location where they will not roll away

  2. 25YvAOnd5Bu5RhSO

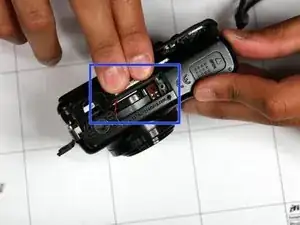

    • Squeeze area noted by blue square and pull outside shell apart from remaining camera.

  3. EI1ygwLy5CJYojVn

    • Remove two screws holding screen to circuit board marked by red circles

  4. WIjyycAjCF5AUm4S
    WIjyycAjCF5AUm4S
    dD4A3xTxgKEl4RNI
    S31Iilomt2fj5AgL

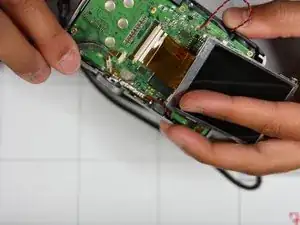

    • Lift screen up such that orange circuit ribbon fully extends

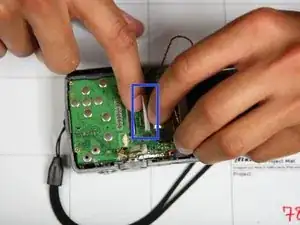

    • Flip white peg up noted by blue box

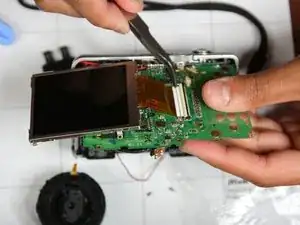

    • Using tweezers gently remove orange circuit ribbon from white peg. Make sure white peg remains up otherwise ribbon may tear.

    I have Samsung s85 camera but display is not working

    Can you sell a display??

    shivamthakor446 -

Заключение

To reassemble your device, follow these instructions in reverse order.
