Samsung S85 Outside Casing Replacement

Сложность

Easy

Шаги

2

Необходимое время

5 минут

Введение

If your outside casing is damaged, you can remove it and replace it with a new one.

Инструменты

  1. GZcYTVxrlxZTJueJ
    GZcYTVxrlxZTJueJ
    O2NCmXcNtJrEFcDv
    QtDTRI6JI4FMvgxr

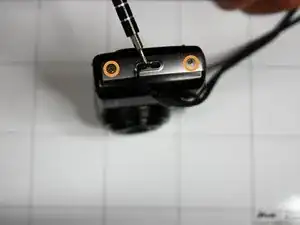

    • Remove 4 screws from bottom of camera

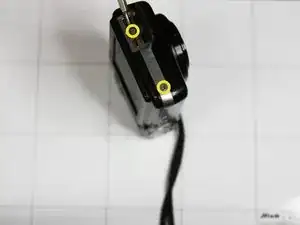

    • Remove 2 screws from side of camera

    • Remove 2 screws from side of camera

    • Place Screws on magnetic surface or location where they will not roll away

  2. KTEtYcjRoqGOR4Hj
    KTEtYcjRoqGOR4Hj

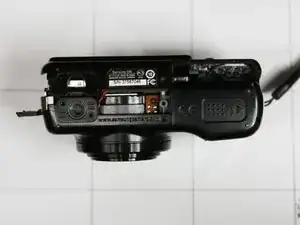

    K1huHGUrb1NUawKP

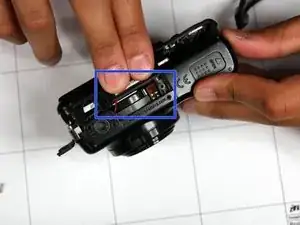

    • Squeeze area noted by blue square and pull outside shell apart from remaining camera.

Заключение

To reassemble your device, follow these instructions in reverse order.
