Samsung S760 Battery Cover Replacement Guide

Автор: Isaiah Weidmann

Комментарии: 1

Samsung S760 Battery Cover Replacement Guide

Сложность

Easy

Шаги

Необходимое время

15 минут

Введение

The battery cover can break off fairly easily if you're not careful, as it is attached by only a single hinge. This guide will show you how to replace it.

Инструменты

Шаг 1

Placing your thumb on the battery cover, push outwards, away from the camera in the direction the arrow is pointing. If done correctly when it's completely unhooked, the latch will open.

Шаг 2

Tip the camera as to gently slide the batteries out of the camera.

hello

This camera which battery is use

Saidali R - 07/12/20

Шаг 3

All screws in this camera are removed using the Phillip Screwdriver #000 bit. Also, all dimensions included refer to screw lengths.
Locate and remove the six 4mm screws on the sides of the camera.

Шаг 4

Use the plastic opening tool to pry open the back case, following alongside the edge of the case if need be.

Шаг 5

Once the back case is removed, use the plastic opening tool to gently pry off the front case.

Шаг 6

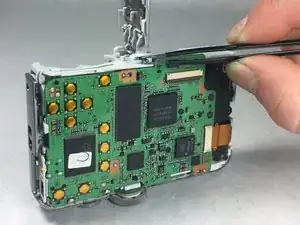

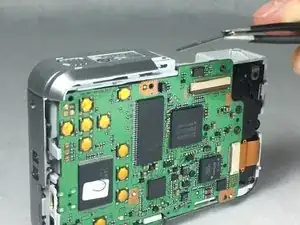

Using the pointed end of the Spudger, push the metal pin out of the hinge as far as it will go (this will typically be halfway).
It can be hard to get the Spudger point to center on the pin, so try choking up on the Spudger.
