Samsung Notebook 7 Spin NP740U3MK01US Wi-Fi Card Replacement

Автор: Alexander Ulman
  • Комментарии: 0
Samsung Notebook 7 Spin NP740U3MK01US Wi-Fi Card Replacement

Сложность

Moderate

Шаги

9

Необходимое время

20 минут

Введение

This is a guide to replace the Wi-Fi card on the Samsung Notebook 7 Spin NP740U3MK01US. However, it is extremely difficult to replace the Wi-Fi card itself so this guide shows how to replace the whole USB board that the Wi-Fi card is attached to. If you are unable to connect to a wireless network use this guide to replace your Wi-Fi card.

  1. Hx2vdSPBSZL6oIHk

    • Flip your laptop over so that the back is face up.

  2. uhZCsAoiwgRtlGPA
    uhZCsAoiwgRtlGPA
    m5oitTrWY6pQMu6d

    • Use a Phillips #00 screwdriver to remove the four 6.5mm screws and the six 4.5mm screws that secure the back plate.

  3. 15kZI2dUaRNuGdDD
    15kZI2dUaRNuGdDD
    MelW4FSxBIYKCEPZ

    • Use a plastic opening tool to remove the back plate from the laptop.

    • It is recommended that you start from a corner then run the tool along the edge of the back plate.

  4. CLEjvVbEIr2pO6Ds
    CLEjvVbEIr2pO6Ds
    ViAMxqfikBZRaGKT

    • Use a Phillips #00 screwdriver to remove the three 4.5 mm screws holding the battery in place.

  5. w3xUaQZCbqOKq6F5
    w3xUaQZCbqOKq6F5
    xqFuLxVrVNF3PRoZ
    RoDZXbqDa1CL2FYN

    • Use a spudger to pry the battery connecting cable from the laptop and remove the battery.

    • Using the metal spudger may severely damage the internal components in your device.

  6. XQrDZCkX2UCbXNAk
    XQrDZCkX2UCbXNAk
    pu1AsAXYxDW4S3DJ
    C2ViMppIjiJN5OgA

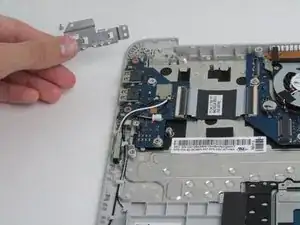

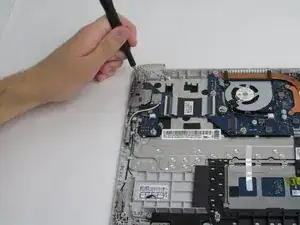

    • Use the Phillips #00 screwdriver to remove the two 4.5mm screws holding the cover plate in place.

  7. PuAGeVlK3mkClowJ
    PuAGeVlK3mkClowJ
    6flLS1gPY5vpasl6

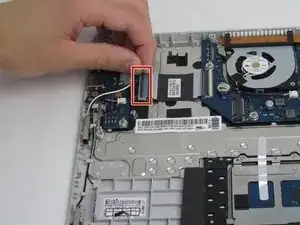

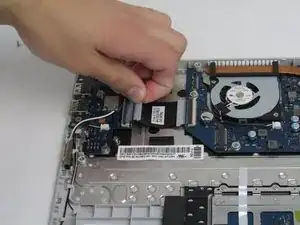

    • Remove the black ribbon cable by pulling up on the black cover and sliding out the cable.

  8. BvbDAsVp1tEllSlR
    BvbDAsVp1tEllSlR
    ZfBEUwJEKeEXQxri
    EkZYCrE5UtRxLOvC

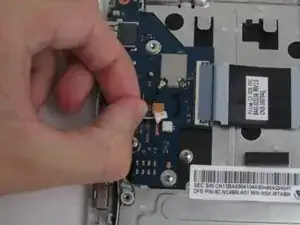

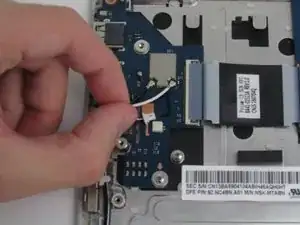

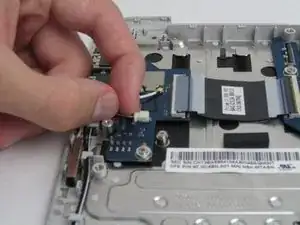

    • Remove the three black and white cables by gently pulling on them.

  9. cPTbQArvUPERhW2D
    cPTbQArvUPERhW2D
    nI1WxJTvFNPBCo1d

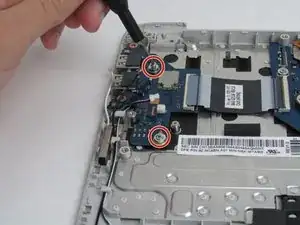

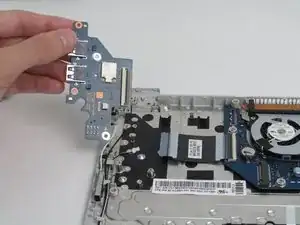

    • Use the Phillips #00 screwdriver to remove the two 4.5mm screws holding the USB board down and remove the board.

Заключение

To reassemble your device, follow these instructions in reverse order.
