Samsung NP350V5C-T02US Hard Drive Replacement

Автор: Michael Stephenson
  • Комментарии: 0
Samsung NP350V5C-T02US Hard Drive Replacement

Сложность

Easy

Шаги

5

Необходимое время

3 - 8 минут

Введение

This guide will instruct you on how to locate and remove the hard drive to the Samsung computer.

Инструменты

  1. RafPu6Z1tENFViQa

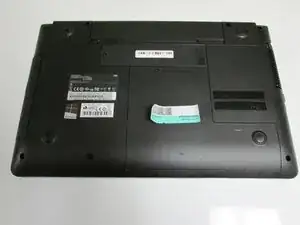

    • Flip the laptop over so that the bottom is facing toward you.

  2. G3E5BXKIR1f1dQxp

    • Using the Phillips #1 screwdriver, remove the M2.5X5 mm screw to take the back cover out.

  3. LrWJEXHZxHip2Bke

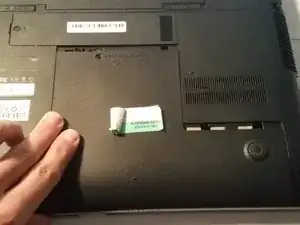

    • Using your hand slide the ODD/HDD/Memory panel off in a downward motion.

  4. XXykZ3Kt3eU2ZVLN

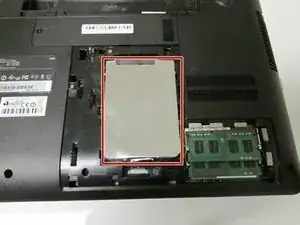

    • Locate the hard drive

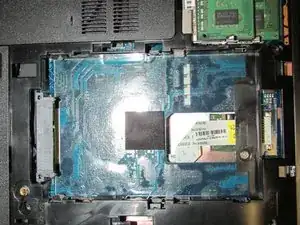

  5. 4JE5VRVcxQqlwGIP
    4JE5VRVcxQqlwGIP
    4greBdrqXE5kUpAf

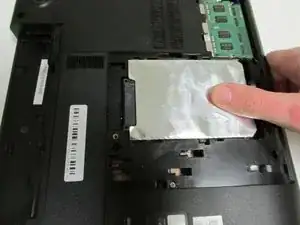

    • To remove the hard drive, use a small amount of force and slide it out.

Заключение

To reassemble your device, follow these instructions in reverse order.
