Samsung NP350E5C-A02US RAM Replacement

Сложность

Easy

Шаги

9

Необходимое время

5 минут

Введение

If you have followed the steps on our troubleshooting page and find that your memory sticks are bad. Then, this guide will help you replace them.

Инструменты

  1. LWYKxxBVEXYjyYgt

    • Lay the laptop down so that the bottom is facing up.

    • There is no battery in the picture.

  2. FvwcI22Sj5wvuVL2

    • Slide the two plastic tabs to the opposing sides.

    • There is no battery in the picture.

  3. 6LCWOKHdLYwHhAlT

    • While both are in the unlocked position, slide the battery out.

    • There is no battery in the picture.

  4. EehGlSRxSWjAGTSq

    • Remove the M2.5x5 mm screw with a Phillips #0 screwdriver.

  5. 3Wd1KpC3AD3qZLpV

    • Slide the cover 1/4" towards the front of the laptop.

  6. PwQGHKLYDGufoAP3

    • Then, lift the cover off.

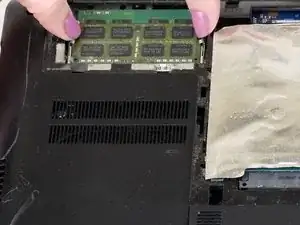

  7. AFWoGYQh22qdHadZ

    • Gently push the lock springs outwards and the RAM stick will rise when it's free.

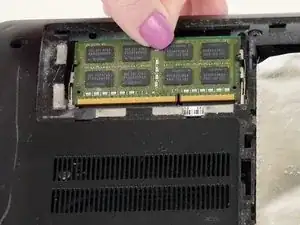

  8. WHAwXoMYYtJLY2o1

    • Then, gently pull the RAM stick towards the front of the laptop.

  9. ivHxGiMQpJTNFwTW

    • Repeat the last two steps for the second RAM stick if needed.

Заключение

To reassemble your device, follow these instructions in reverse order.
