Samsung NP-R540-JA09US RAM Replacement

Сложность

Easy

Шаги

7

Необходимое время

30 секунд - 2 минут

Введение

Is your laptop not loading pages correctly? Consider using this guide to replace the RAM in your laptop.

  1. gl3hLeSQJt2HotBa

    • Turn off laptop before starting.

    • Remove power cable before starting.

    • Flip the laptop over so that the bottom of the laptop is facing upwards.

  2. nvZx6qNaIlqN3qif

    • Pull the two latches outward.

  3. OauGQ46yAyw6NsZM
    OauGQ46yAyw6NsZM
    IeGW3vQbbmuGlRtL

    • Slide the battery out of the laptop.

  4. ai4BeRGMA1RrTmNK

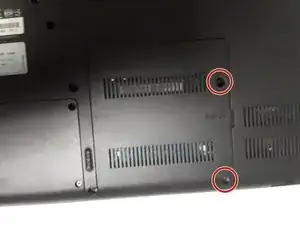

    • Unscrew and remove the two screws from the back panel labeled "Memory" with a Phillips #0 screwdriver.

  5. JAliSCJIqNKoJcsY

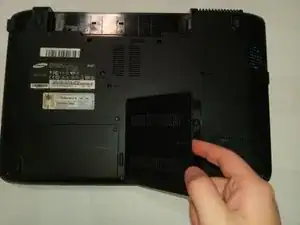

    • Place the flat end of the spudger or your fingers, if possible, between the panel and the laptop. Pry the panel by moving the spudger up and down until the panel can be removed.

  6. 4vOA3uEZLsGHwIxa
    4vOA3uEZLsGHwIxa
    fYXHSHPpuc4EpZX3

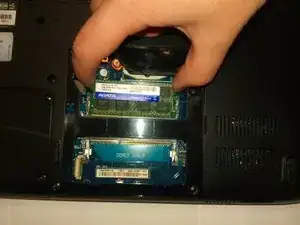

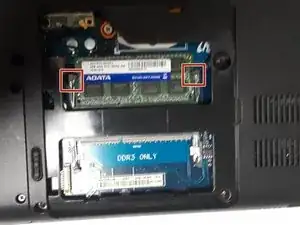

    • Release the two holding pins by pushing them away from each other with your fingers or a spudger.

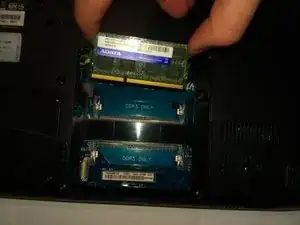

  7. YGiL4twaMWeV63yY

    • Pull the RAM out of the laptop with your fingers by gently lifting it up.

Заключение

To reassemble your device, follow these instructions in reverse order.
