Samsung HMX-QF20 Internal Microphone Replacement

Автор: Ian Dorset
  • Комментарии: 0
Samsung HMX-QF20 Internal Microphone Replacement

Сложность

Difficult

Шаги

5

Необходимое время

Нет оценки

Введение

Before replacing, make sure the microphone is not being covered by your hand during filming, as this will muffle the audio.

  1. CdgI3oOrGwbpqSeX

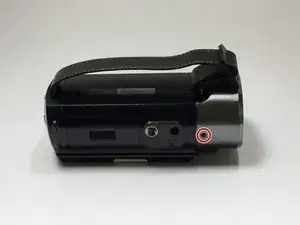

    • Remove the 4 mm screw on the underside of the camcorder near the tripod mount.

  2. 6QSORsxwY2C6ZO65

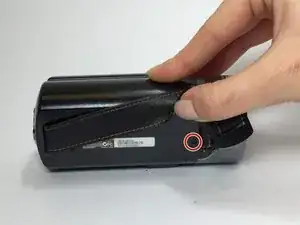

    • Remove the 4 mm screw next to the buckle of the hand strap closest to the lens.

  3. xP4rYS2wOxfKgnK4

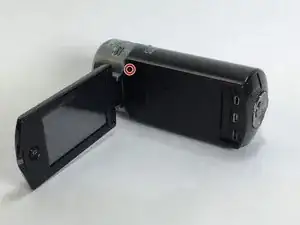

    • Open the LCD screen. Remove the 4 mm screw on the inside panel, located at top left corner.

  4. mHp3kdjonFwQWMDY

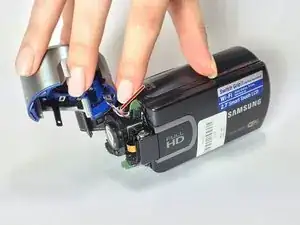

    • Firmly grip and pull the front casing on the lens to remove it.

    • Be sure to remove the front casing at gently as possible to prevent damaging the attached ribbon cable. If not careful, the ribbon cables could be torn.

  5. ldCSABAyOem3NS5K

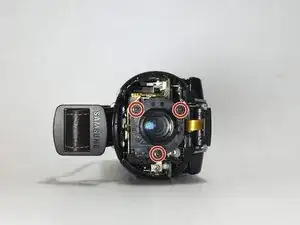

    • Remove the three 5 mm screws surrounding the lens.

Заключение

To reassemble your device, follow these instructions in reverse order.
