Samsung Galaxy S7 Active Rear Camera Replacement

Автор: Joe De Leone
  • Комментарии: 0
Samsung Galaxy S7 Active Rear Camera Replacement

Сложность

Moderate

Шаги

13

Необходимое время

40 минут - 1 час

Введение

This guide will teach you how to replace the rear camera on the Samsung Galaxy S7 Active.

  1. AdwfmWKHNLomBYXm

    • Melt the adhesive on the screen by applying a blow dryer directly on the screen.

    • Your phone is hot, please do not touch it with your bare hand.

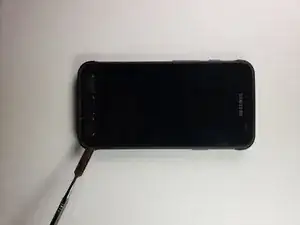

  2. n6RgCfPhK3LHEtrY

    • Wedge the metal spudger in between the screen and the frame to begin separating them.

    • It would be easier to separate the screen from the sealing adhesive on the frame if you with more than one metal spudger.

    • Your phone might no longer be watertight after you reassemble it.

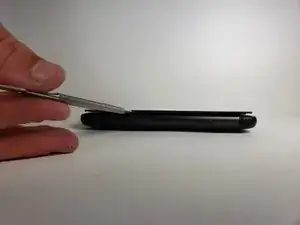

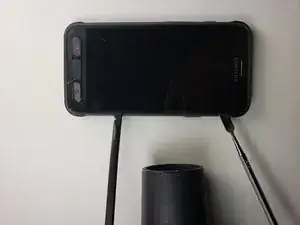

  3. uFo35fyJuyccAMbA
    uFo35fyJuyccAMbA
    ARAOdEP1KTrDPUiu

    • Slide the metal spudger around the phone at least once.

    • It would be easier to slide your metal spudger if you apply the blow dryer to where you are currently sliding.

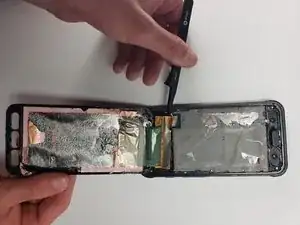

  4. wOu5iIFBnIkde4ac

    • Lift the screen up with your hands.

    • Please wash your hands thoroughly with hot water and soap after you finish.

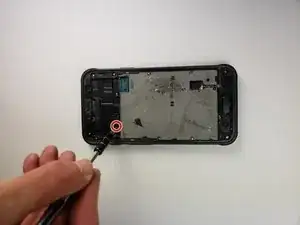

  5. yLol6PWCZB1u2FuB

    • Use a Phillips #000 screwdriver to remove a single screw.

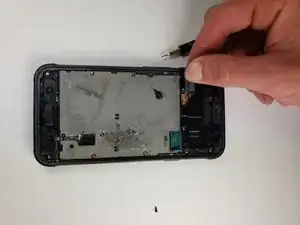

  6. RQNjEgWihNBTFIEn

    • Use tweezers to remove the small plastic cover you just unscrewed.

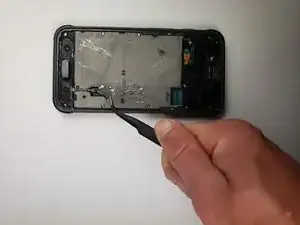

  7. uFJTX6TsBxyalmDa

    • Use tweezers to remove the other small plastic cover.

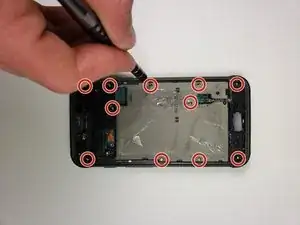

  8. kKMBJX1YAJCyQcyX

    • Use a Phillips head #000 to take out the eleven screws marked in the photo.

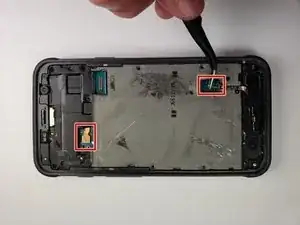

  9. 4qdyaEQXaiXEDQmK

    • Use tweezers to disconnect the marked pieces from the motherboard.

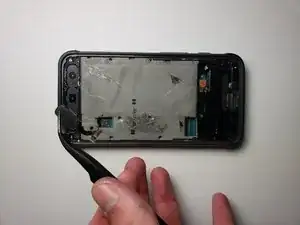

  10. Ef61fbNo4VxU5YrR

    • Use tweezers to take out the middle button and its connection to the motherboard.

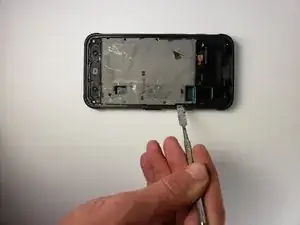

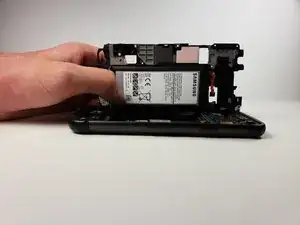

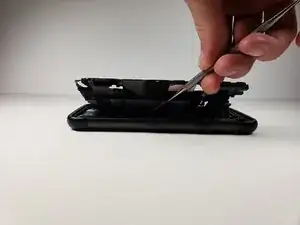

  11. DqsKGB3C6BTeCcs1
    DqsKGB3C6BTeCcs1
    WV5btLQ2bdiPwaVf
    SBoQpxBbtyCHumrf

    • Use a metal spudger to pull the mid frame and battery off of the motherboard.

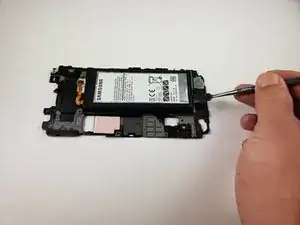

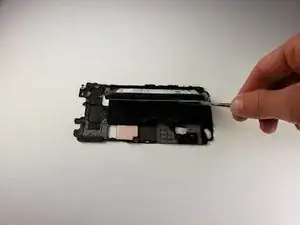

  12. LfT1MNULHMCOkk16
    LfT1MNULHMCOkk16
    qeIShjRRfs3tKOhh

    • Use a spudger to remove the battery from the midframe.

    • To install a new battery and adhesive, follow this guide.

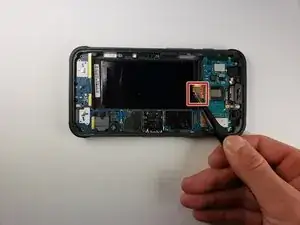

  13. Xr2x3ZLcaARww5Xw

    • Use tweezers to disconnect the front camera from the battery.

    • The connector should unsnap similar to a lego piece.

Заключение

To reassemble your device, follow these instructions in reverse order.
