Samsung Galaxy S5 Mini Daughterboard Replacement

Автор: Sophia
  • Комментарии: 0
Samsung Galaxy S5 Mini Daughterboard Replacement

Сложность

Moderate

Шаги

9

Необходимое время

30 минут - 1 час

Введение

Use this guide to replace a broken/damaged daughterboard, which contains the USB charging port, as well as an antenna.

  1. Z6IRBZCW2LhOqwvJ

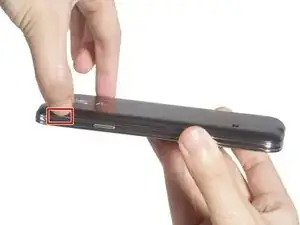

    • Remove the back cover.

    • Ther is an indent to insert your fingernail and unclip the back panel.

  2. ATLkRw5lwA1dBP1J

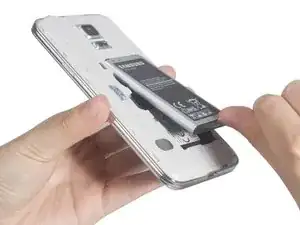

    • Remove the battery. If you have the SIM card and SD card in, remove them as well.

    • Whe re-assembling, make sure the battery contacts line up.

  3. wsLZZMFEbUssZLAs
    wsLZZMFEbUssZLAs
    fQHVpyVSnUJ4LQ1t

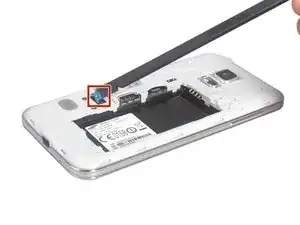

    • Open this small cover and release the home button flex connector.

  4. k2Z3dVvZYTEsnf2V
    k2Z3dVvZYTEsnf2V
    bDk1qnmBIfrEunNa
    alFwAYNtAdZYSJ2Q

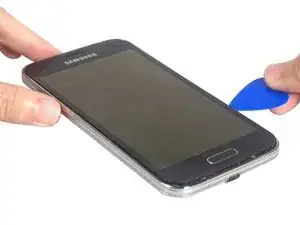

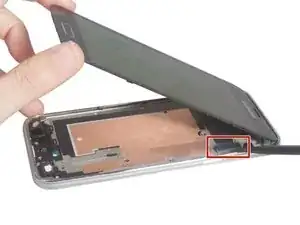

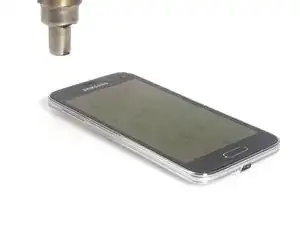

    • Heat up the screen and cut the adhesive around the screen. Pry it up and release the LCD screen connector.

    • The connector is located at the top right of the screen, so lift it up or to the left.

  5. qCoIeK5ZYtHr31HU
    qCoIeK5ZYtHr31HU
    lxCRcDLKQKJfRB3r

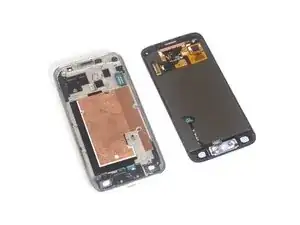

    • Remove LCD screen.

  6. Yr4NELZwQNtQ4brS
    Yr4NELZwQNtQ4brS
    QEhoG6bZ662BwTV3

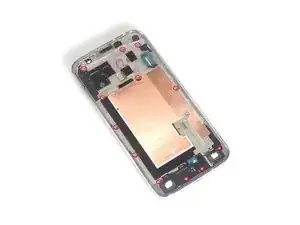

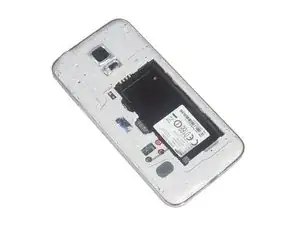

    • Remove all the screws.

  7. wynLaJXmqlfEWEeJ
    wynLaJXmqlfEWEeJ
    5ggeglYQnI44ad5b

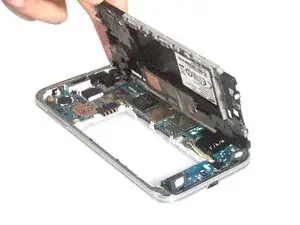

    • Remove mid-plate.

  8. Wj5t6Rr5A2QpWYLo
    Wj5t6Rr5A2QpWYLo
    CdAB2e2C3qPwSVOH
    4n5xGgUKSFPOeTZC

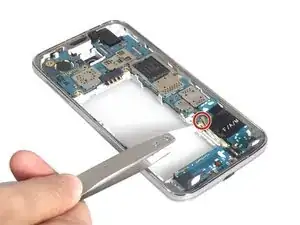

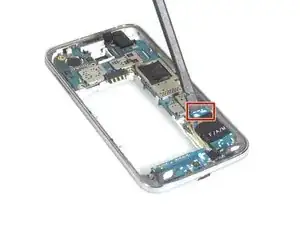

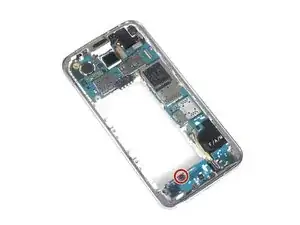

    • Remove screw, release USB board flex connector and antenna cable connectors.

  9. uQNpUPe2BjCIkEgN
    uQNpUPe2BjCIkEgN
    JTNISN3Era51vhX2

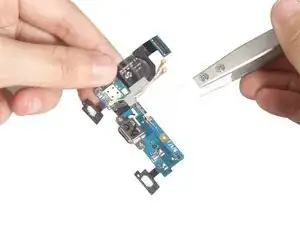

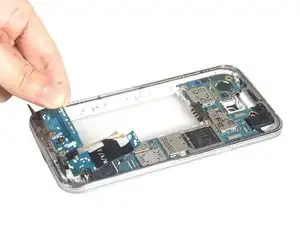

    • Remove the daughterboard and clean the signal cables from assembly. And you can replace the new USB charging board for Samsung Galaxy S5 Mini.

Заключение

To reassemble your device, follow these instructions in reverse order.
