Samsung Galaxy S II Screen Replacement

Автор: Bader
  • Комментарии: 1
Samsung Galaxy S II Screen Replacement

Сложность

Moderate

Шаги

17

Необходимое время

35 - 40 минут

Введение

Damaged touch screen of a mobile phone may render the device useless as it disables the touch function in the affected zone or at times the entire screen. Using this guide, damaged touch screen of a Samsung galaxy S2 mobile phone can be easily replaced at home using standard tools. This guide also provides information about the major components used in a mobile phone and the handling precautions to be taken during disassembly. Replacement of screen must be carried out extremely carefully to avoid damage to other delicate components.

  1. mOdREDP4flnCRmTT

    • Gently remove the back cover starting from the slot given on the right side.

  2. 3sJ6JFWeMYPnKDXX

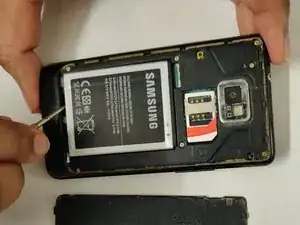

    • Use a Phillips #00 screwdriver to remove the battery from the slot.

    • Carefully place the battery away from some hot object or fire.

  3. unBkXTfwHmphcOIV

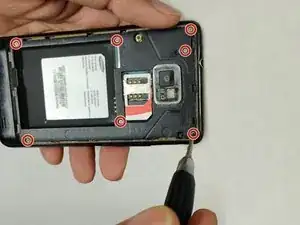

    • Use a magnetic philips #0 head screw driver to open the 7 x 1/16 in (1.6 mm) philips head screws shown in the image.

    • Place the screws carefully in a box.

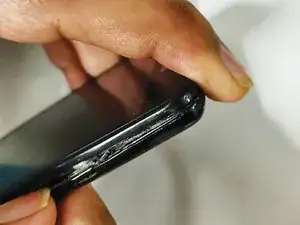

  4. h2GwC1HgPHufnPY2
    h2GwC1HgPHufnPY2
    FdwhnqQatCHOVFfP
    GcWMOGGPapnLKFbT

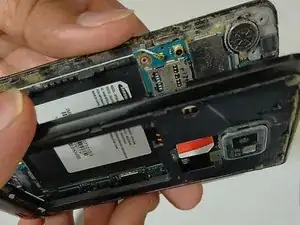

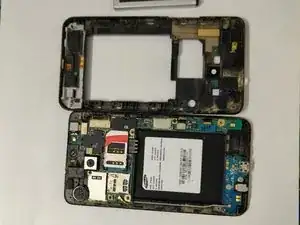

    • Gently unlock the snap locks starting from the top left corner and progressing along the perimeter to remove the back case.

    • To unlock the snaps, apply force close to the snap in order to avoid cracking of the plastic cover.

    • Remove the plastic cover carefully and place on the white paper.

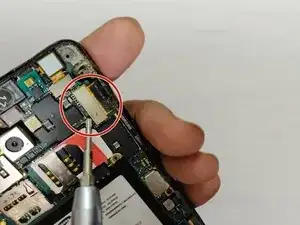

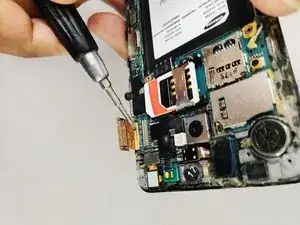

  5. eaAMCRvwJfPAsGFS
    eaAMCRvwJfPAsGFS
    WwdtXDkyZ54Cra5h

    • Use a screwdriver or another pointed tool to disconnect the screen connector.

    • Lift the cable out of the slot.

    • Gently handle the cable to avoid damage to the cable or the connector.

  6. E4qViMHLTnRtH2bc
    E4qViMHLTnRtH2bc
    hyOl3Hom4fEpswYY

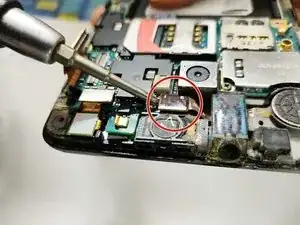

    • Remove the connector for the speaker and audio jack carefully.

    • Gently lift the cable to avoid damage to the cable or the connector.

  7. F3kIqrAURZhdGOkK
    F3kIqrAURZhdGOkK
    Cyg3DAn6jatUj3NV
    QSEHo1cPJC1BYMFJ

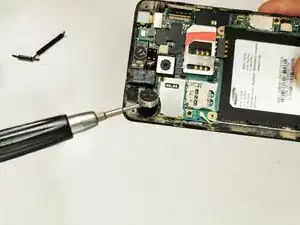

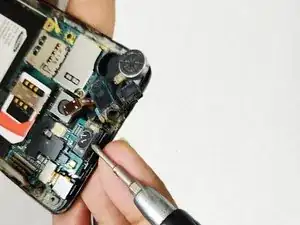

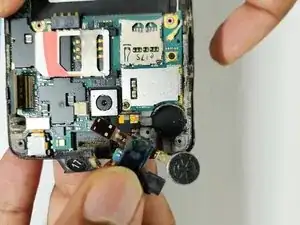

    • Use a screwdriver to gently lift the speaker which is fixed to the base with double side tape.

    • Gently lift the earpiece using a flat screwdriver.

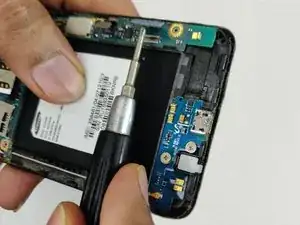

  8. swiMUWm2FHZgtXOL
    swiMUWm2FHZgtXOL
    lh56FDjc5UQGh6ne
    OZE42uZSki4ioyjg

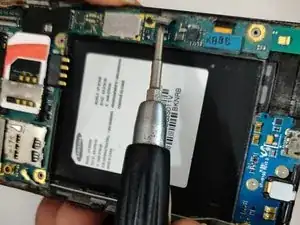

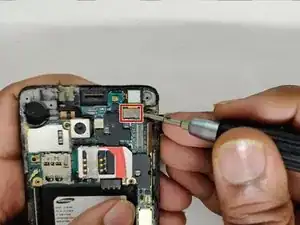

    • Unplug the secondary camera connector carefully and lift the cable.

    • Then unplug the connector that receives the input from the screen.

    • Remove the connection for the charging port using a screw driver.

    • Handle carefully to avoid tearing off the cable.

  9. TrG1iNpZwLCpCM44
    TrG1iNpZwLCpCM44
    JmdTkSLXlAi5Irrp

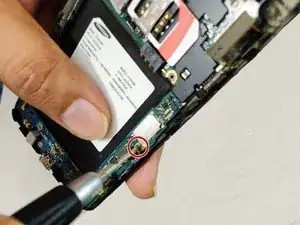

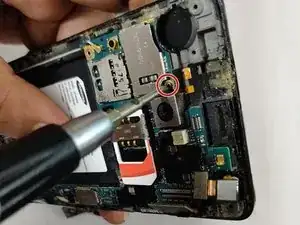

    • Remove the two 1.6 mm black head screws using the Phillips #00 screwdriver.

  10. gPSKeG3mLhV13VBP
    gPSKeG3mLhV13VBP
    IRiQsZssuv6RdyIA

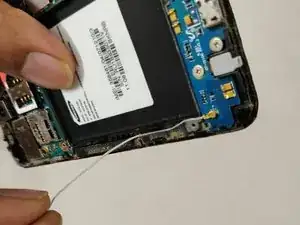

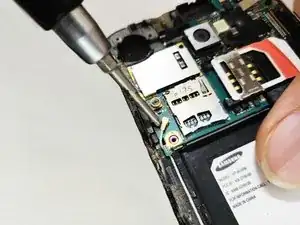

    • Disconnect the antennae from both the ends by removing the connections using flat screwdriver.

    • Carefully pull out the antennae cable from the slot.

  11. 1AU3ZXDXVI4QCGN6
    1AU3ZXDXVI4QCGN6
    lDeLivaXALpxBNqf

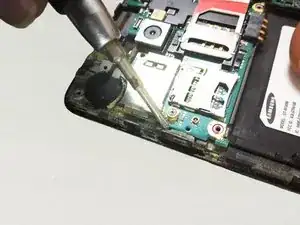

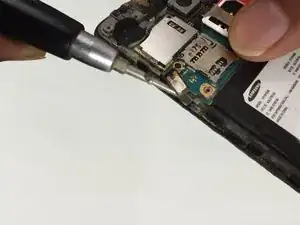

    • Gently peel off the power button fixed with double adhesive tape.

    • Carefully lift the button out of the slot.

    • Try to keep the double side tape on the button and handle the cable carefully to avoid tearing the ribbon.

  12. emGOIy4QddOCT2Ik
    emGOIy4QddOCT2Ik
    PQ6keYowCTX4UZUl

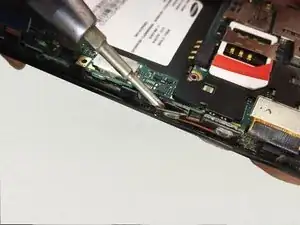

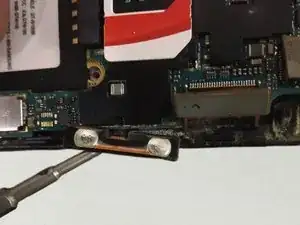

    • Repeat the same procedure from step 15 to remove the volume up down button.

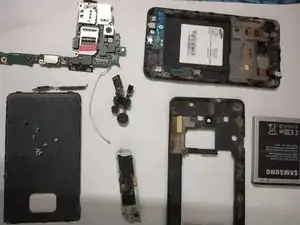

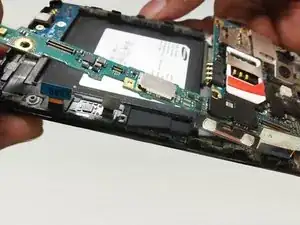

  13. KQNWXRKS1HIKfhvb
    KQNWXRKS1HIKfhvb
    m4TeOoYJDQGlfCDX

    • Now the main board is free. Carefully lift it up and place on the workbench gently.

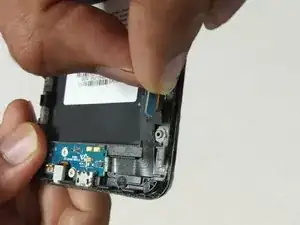

  14. fL4yyi2kDYi4MEqv
    fL4yyi2kDYi4MEqv
    mrjHQQcEMmupjNcE

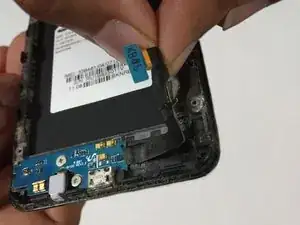

    • Peel off the ribbon cable connecting the charging port and microphone by hand.

  15. nyFOYrQJdIJf4GZF

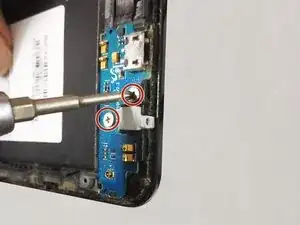

    • Remove the two 2.0 mm screws using the Phillips #0 screwdriver.

  16. GETyRBqXHZEw3Uho
    GETyRBqXHZEw3Uho
    mtADbdeM4hxVxwNQ
    B2cytTkBn3IlE4xo

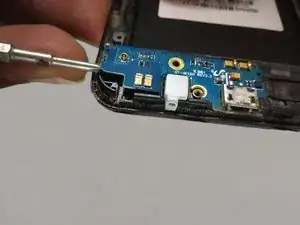

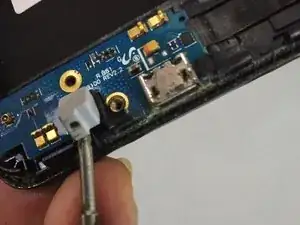

    • Lift the microphone gently.

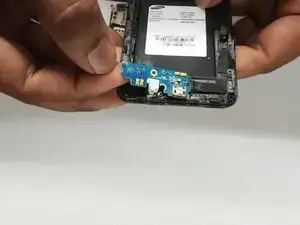

    • Lift the board out from the metal casing and place on the workbench.

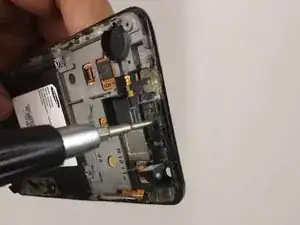

  17. VDIrjBHfHsPySlyJ
    VDIrjBHfHsPySlyJ
    FjqrpSFK6RsGPJYR
    qb6JKMtRlJFxVj5I

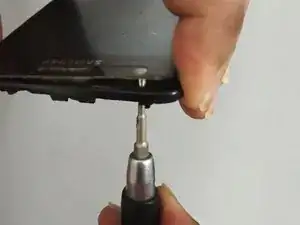

    • Finally push the screen out applying force through the screwdriver at the highlighted locations.

    • Take out the screen, clean the remaining double side tape and adhesive.

    • Install the new screen and follow the same steps in reverse order to re assemble the phone.

Заключение

To reassemble your device, follow these instructions in reverse order.
