Введение

This guide will show you how to replace the home button for the Samsung Galaxy Prevail 2. No background information is required.

Инструменты

  1. al6f2XNlBLvW4FHc
    al6f2XNlBLvW4FHc
    P3X12JWuwFDN5cvM
    LRLBwLQcxBE4R3aJ
    • Using your finger nails or the spudger; pry the plastic casing open, and pull away from the body of the phone.

  2. B6qrvgNlTKmKKSyt
    B6qrvgNlTKmKKSyt
    KKjASFBeg2hrNC2S
    K262LKNob34WOewl
    • Gently pull the battery out of the phone.

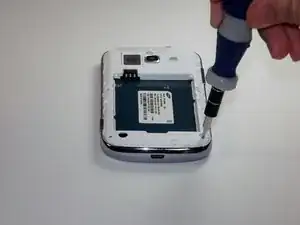

  3. RI4MJA2hU1I2Q6BL
    RI4MJA2hU1I2Q6BL
    gmwxABqSWDOjSNQY
    • Unscrew all of the screws.

    • Be sure to set aside in a safe place.

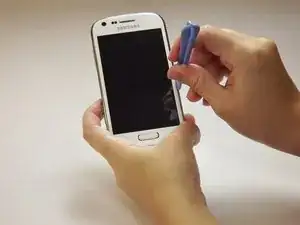

  4. tGoaHdM64QnrOrfO
    tGoaHdM64QnrOrfO
    nKBFnAMEanPeOrCk
    rxIMOYK6HVKCQFKP

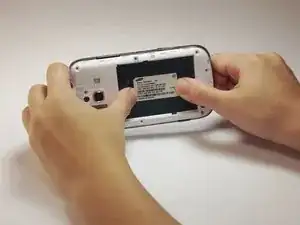

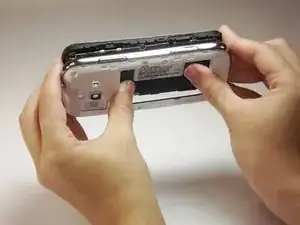

    • Insert the plastic opening tool between the silver frame and the white face of the phone to pry off the front face.

    • Make sure to pry around the entire frame to loosen it before proceeding.

    • Use your thumbs to separate the motherboard from the back of the phone

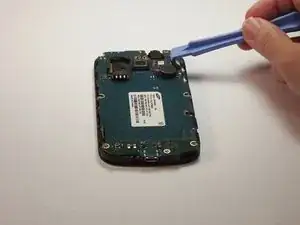

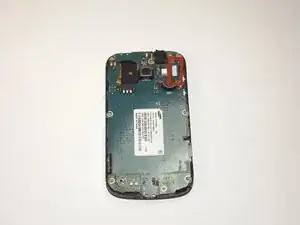

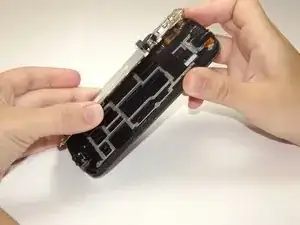

  5. nKZIYxraTRKD6o5K
    nKZIYxraTRKD6o5K
    PjB5jjgkivm1lSFS
    fbGhDx1qGmS4qSio
    • With the plastic opening tool, lift up the flap to to fully open the motherboard.

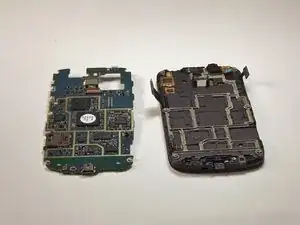

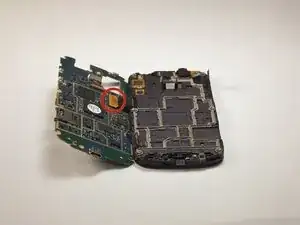

  6. KiLPa2PrZfoBMKmK
    KiLPa2PrZfoBMKmK
    ASlETo3XmWVinUFw
    VAvTCHN6FHnEdnr5

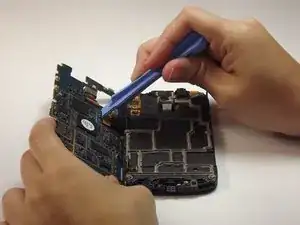

    • With the plastic opening tool, lift the second flap up.

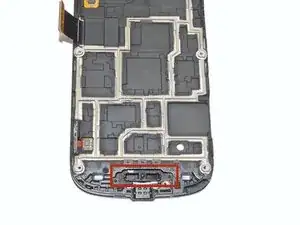

  7. Vq2mIxbwY5K4evmA
    Vq2mIxbwY5K4evmA
    cr1uqyhF4cQSQ1M2

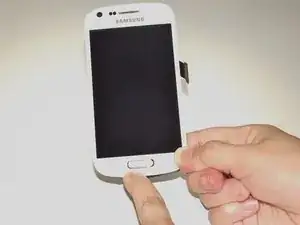

    • Choose the motherboard side that contains the home button, as shown in the image.

  8. vYxgsNTg55SX3wwV
    vYxgsNTg55SX3wwV
    1ecaqSQATHTbXLtl

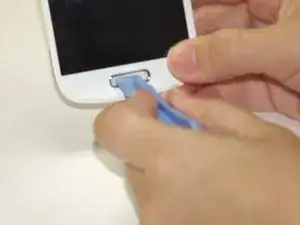

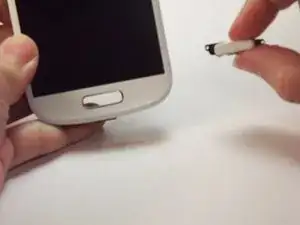

    • Use the plastic opening tool to push the home button out.

    • Push the button from the face of the phone inwards as indicated in the first image.

Заключение

To reassemble your device, follow these instructions in reverse order.
