Ryobi VC120 Motor Replacement

Автор: Allison Schoch
  • Комментарии: 0
Ryobi VC120 Motor Replacement

Сложность

Moderate

Шаги

4

Необходимое время

Нет оценки

Введение

Has the motor in your Ryobi VC120 vacuum reached the end of its life? Try replacing it with this guide!

Инструменты

  1. NxIV4iRwY4ZERKLI

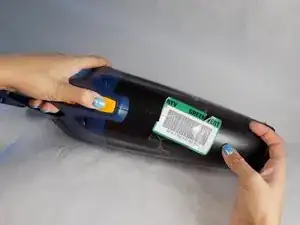

    • Pull the black nose off of the body of the vacuum, by pushing in the orange button closest to the nose.

  2. B3RGyQxjTHeNyN6n
    B3RGyQxjTHeNyN6n
    uyJYktJjalBlYQFG

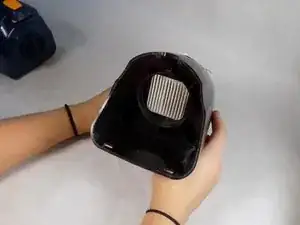

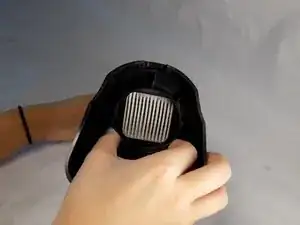

    • Grab the filter with two fingers and slide it out.

  3. qMgrC2Q6TYIgFBYG
    qMgrC2Q6TYIgFBYG
    EEW1QqRWQmMStEsV

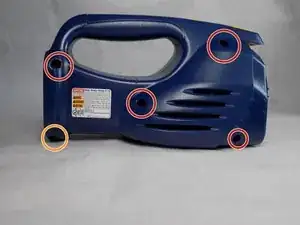

    • Using a Philips head screwdriver, remove the four screws located on the side panel of the vacuum.

    • There are two types of screws on this device. You may want to use a magnetic screw pad to organize your screws to be sure they return to their designated holes.

    • 4x 19.1mm

    • 1x 14.3mm

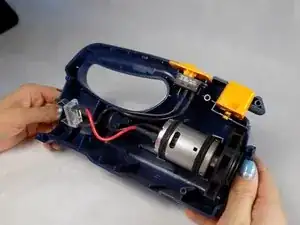

    • Once the screws are removed, you should be able to separate the side panel from the rest of the device.

  4. ZdGkfpgat3CyHh2O
    ZdGkfpgat3CyHh2O
    KMLaDk2PBwy3q2Wc
    TsMEuYaPlD3bvUZE

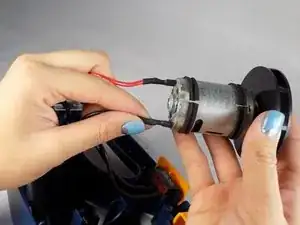

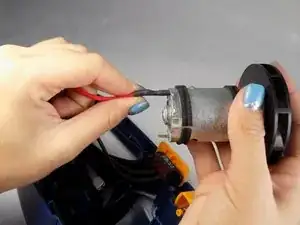

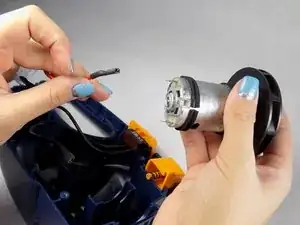

    • Pull your motor out, and remove the black and red cables from the motor by hand.

Заключение

To reassemble your device, follow these instructions in reverse order.
