Ryobi CSB135L Power Cord Replacement

Автор: Nathanael Winchell
  • Комментарии: 0
Ryobi CSB135L Power Cord Replacement

Сложность

Moderate

Шаги

4

Необходимое время

30 минут

Введение

This guide will show you how to properly replace the power cord in the Ryobi CSB135L. If the symptoms in our troubleshooting page for a damaged power cord align with the symptoms your Ryobi CSB135L are experiencing your power cord is most likely damaged.

  1. lmFbdPntO5tXUgSl

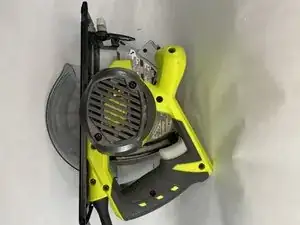

    • Place the saw on a flat surface.

    • Make sure the saw is unplugged and unpowered.

  2. eLPIrSPbhdFWnRAO
    eLPIrSPbhdFWnRAO
    dAO6XVQygXnBvExW

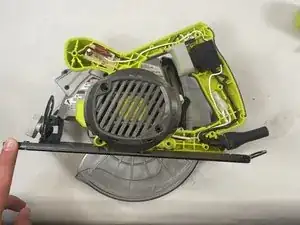

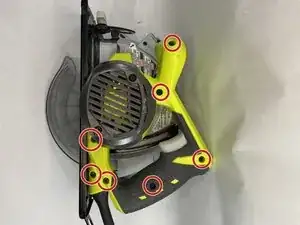

    • Remove the six M4x16mm Phillips screws and the two M4.5x35mm screws using a Phillips #2 screwdriver.

    • Remove the front facing half of the handle assembly exposing the internals of the saw.

  3. boKAA2DGkT6M1s2F
    boKAA2DGkT6M1s2F
    JVaMwwMQc1mbESZU

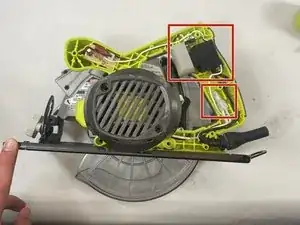

    • After removing the handle assembly locate the trigger switch and wire nut in the saw.

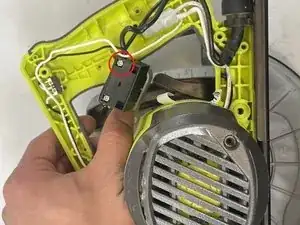

    • Remove the screw from the black wire of the power cord using a Phillips screwdriver. Then remove the wire.

    • Loosen the wire nut and remove the neutral wire from the power cord.

  4. sSGNSvDmhDAmBPLG

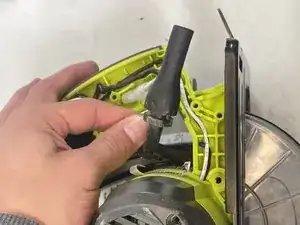

    • Remove the power cord from the saw.

    • To insert the replacement power cord, insert the black wire of the cord into the trigger switch and tighten the screw. Take the neutral/white wire of the new cord and insert it into the wire nut and tighten the nut.

    • Wire strippers may be needed when installing the new power cord to expose the copper wire.

Заключение

To reassemble your device, follow these instructions in reverse order.
