ResMed AirSense 10 Air Intake Filter Replacement

Автор: Jacey Cobb
  • Комментарии: 2
ResMed AirSense 10 Air Intake Filter Replacement

Сложность

Very easy

Шаги

2

Необходимое время

2 минут

Введение

This guide will explain how to replace the air intake filter in the ResMed AirSense 10 ventilator. Regularly check the intake air filter to prevent the entry of dust and water. Replace the intake air filter every 6 months or if there are any damages or blockages to the filter.

  1. NhoxU1F4VSSclHdr
    NhoxU1F4VSSclHdr
    RrRWbLjAXOEfl3kr

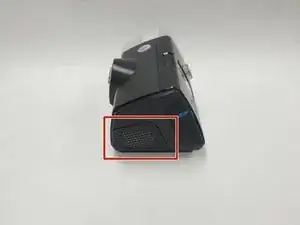

    • The air filter cover is plastic mesh plate, on the same side as SD card holder.

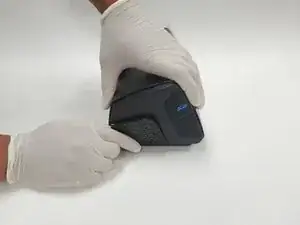

    • Pry open the intake air filter cover on the bottom of the left side panel of the device.

  2. NCMLcOJowxNMYkMs
    NCMLcOJowxNMYkMs
    UyqCZYKYBbaJavyy

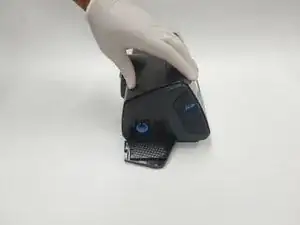

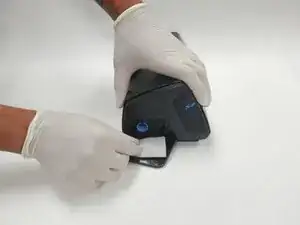

    • Remove the used air filter and inspect for damages or blockages.

    • Replace the air filter as needed.

Заключение

To reassemble your device, follow these instructions in reverse order.

Автор

Jacey Cobb

Участник c: 16/09/20

2073 Репутация

2 комментариев

The filter has a smooth side and a fuzzy side. Which side goes against the cover? Or doesn't it matter? Thanks.

Barbara Pollack -

I’m wondering the same……

Just looked it up, fuzzy side should face outward.

Joanie K -
