Removing Minolta X-370 Film Winding Lever

Автор: Nick
  • Комментарии: 2
Removing Minolta X-370 Film Winding Lever

Сложность

Easy

Шаги

3

Необходимое время

15 минут

Введение

This is a very simple task, only requiring a screwdriver.

Инструменты

  1. ABaFmTZbFXQc4wYl
    ABaFmTZbFXQc4wYl
    wXJQY1wWw1vNBo4h

    • Lift up the winding lever and rotate it clockwise to open the back film compartment.

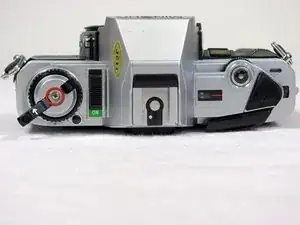

  2. GDKiUZ6FHtkoqhpK
    GDKiUZ6FHtkoqhpK
    TIRtJadVckZf3HnN

    • Lift up the winding handle and remove one 3.85mm screw.

    • Remove the film winding handle.

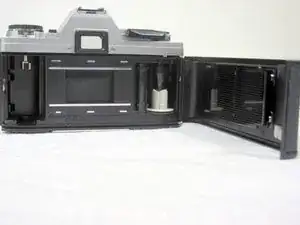

  3. PE1IcUMmOCo1evju
    PE1IcUMmOCo1evju
    RTVYo3p4KRZZTEsd

    • Pull the film winder down until it comes free.

    • Do not close the film compartment. The compartment will not open without the film winding lever installed properly.

    The film wonder handle does not slide back up in place. There is something blocking the way so it will not slide back up in place. What do I do now?

    Richard Hood -

Заключение

To reassemble your device, follow these instructions in reverse order.
