Removing Lenovo Thinkpad T61p RAM

Автор: Glac1er
  • Комментарии: 0
Removing Lenovo Thinkpad T61p RAM

Сложность

Easy

Шаги

3

Необходимое время

5 - 10 минут

Введение

This guide will show you how to remove the laptop RAM.

Инструменты

  1. s1dfTSQGEejAXhME
    s1dfTSQGEejAXhME
    kJYiUPdFLtTXKVyq

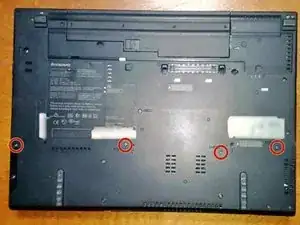

    • Place the laptop on a fat surface with the underside facing up

    • Remove the 4 Philips head screws.

    • Turn the computer over and open the display

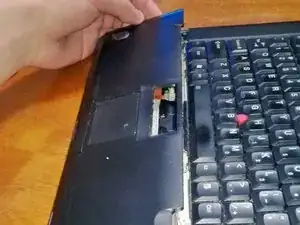

    • Grasping each side of the palm rest, gently lift it off and rotate toward the front of the laptop

    • The palm rest will be connected to the main board by a ribbon cable

  2. W136rrqMHODYlggK

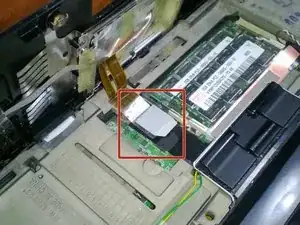

    • Disconnect the touchpad ribbon cable

    • This step is recommended in the service manual however it is possible to remove the RAM without discoinnecting the touchpad cable

  3. LwASrNR1RUl5Hvpl

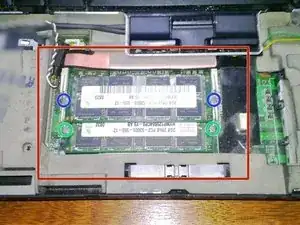

    • Locate the RAM modules

    • Gently press the metal tabs outwards to release the top RAM module and remove it from the laptop

    • With the top RAM module removed you can release the lower RAM module in the same manner.

Заключение

To reassemble your device, follow these instructions in reverse order.
