Remove PowerMac G4 M5183 Main Fan

Автор: Justin Petrilli
  • Комментарии: 1
Remove PowerMac G4 M5183 Main Fan

Сложность

Easy

Шаги

3

Необходимое время

10 минут

Введение

Remove the main fan from the case.

  1. usapiMdDDBFeDDhd
    usapiMdDDBFeDDhd
    6j1Fmc6PY2u6c6GG

    • Pull on outer latch.

    • Lower door until it is level with your work surface.

    • Before working on the computer make sure it is not plugged into a power supply, then touch a metal object. This discharges static electricity, which could damage the computer.

    Fino a li lo intuisce anche un bambino. Io volevo sapere come levare l'altro sportello senza rompere niente. Ma una vodtra risposta non la vedo.

    giorgus -

  2. 1ku2GOoS4NCLKswc
    1ku2GOoS4NCLKswc
    rHNA1bZq1pQcp2yo

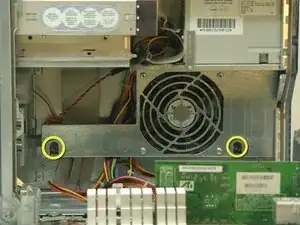

    • Remove the screw from each of the two niches on lower part of fan using the Phillips #1 screwdriver.

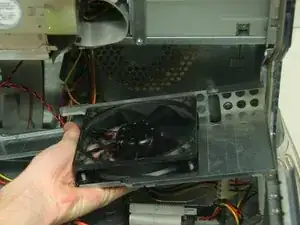

    • The fan housing will still be connected to the computer by a power cable which will be removed in the next step.

  3. mQG3N1UQ3S1neWK6

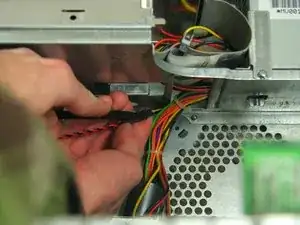

    • Remove the power cable from the fan and detach bracing.
