Razer Blade Stealth 2017 Speaker Replacement

Автор: Helene Willits
  • Комментарии: 5
Razer Blade Stealth 2017 Speaker Replacement

Сложность

Moderate

Шаги

8

Необходимое время

20 минут

Введение

This guide outlines how to replace the speakers in your Razer Blade Stealth if they are broken or malfunctioning. If the speakers are broken, the sound may be warped, unusually quiet, or have a rattling sound. Before replacing, be sure to look at the “Razer Blade Stealth (2017) Troubleshooting” guide for help with various speaker issues. This guide requires some iFixit tools.

  1. LxXeUEUX1QsYMuo2
    LxXeUEUX1QsYMuo2
    qnJFsCybk6ZWj3fs

    • Before you begin, be sure to turn off your laptop and discharge the battery down to 25%.

    • Use a Torx T5 screwdriver to remove the eight, 3mm screws on the bottom cover of the laptop.

    • Whenever you remove screws from the device, remember to save and label them.

  2. qk4H6BDjtIosjQR5

    • Remove the bottom cover of the laptop by sliding it away from the hinge.

    • Do not force the cover up!

  3. QIvH3Auj5t3CqgN5
    QIvH3Auj5t3CqgN5
    SbmLLqpMocvpYq1W

    • Use your fingernail to pry up and disconnect the battery from the motherboard.

  4. F2jGBNOC4tpmVq16

    • Use a Phillips #00 screwdriver to remove the six, 5mm screws securing the battery.

    Do you have to remove the battery before swapping the wifi card? Is disconnecting the power not enough?

    Charles Tsai -

    Hi Charles,

    If you’re swapping the Wi-Fi card, you don’t need to remove the battery. Disconnecting it will suffice.

    Arthur Shi -

    Are two of these screws shorter than the other four? And if so, where do the two shorter screws go?

    James Spinella -

    Looks like the two shorter screws go where the trackpad is!

    James Spinella -

  5. yvhnafCZb3yMYkjF
    yvhnafCZb3yMYkjF
    QrZNXNVFLGHaBM5M

    • Remove any tape attached to the battery.

    • Use the plastic spudger to pry out the battery.

    After removing the 6 screws securing the battery, mine does not come out easily. There is resistance, and I don't wanna forcefully pull it out. Is it supposed to be easy to pick up and take out or is there some sort of tape holding it down from the bottom?

    kairos -

  6. 4BONJaULfbUQgpg2
    4BONJaULfbUQgpg2
    F2QMKDsvGpCYbZtr

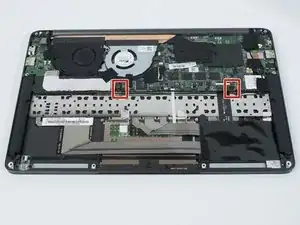

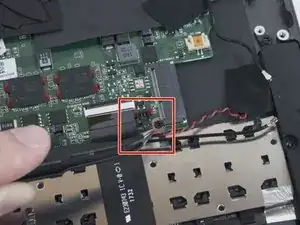

    • Use tweezers to disconnect the red and black speaker cables by lifting up on the pin-header.

    • The same process is used for both speaker connections.

    • Do not pull horizontally on the wires!

  7. AynIZNIOIXTa44HL
    AynIZNIOIXTa44HL
    kDlT5cZMfmr5QBK5

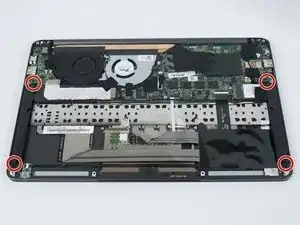

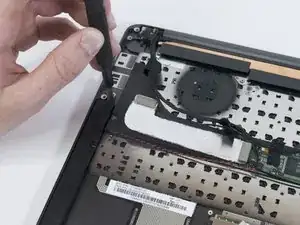

    • Use a Phillips #00 to remove the two, 4mm screws on each speaker.

  8. gV3wMrsYD4sQgStg
    gV3wMrsYD4sQgStg
    342iBaSsesUfOGHH
    bFNsPHhjCI2DT2Ym

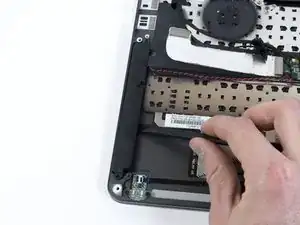

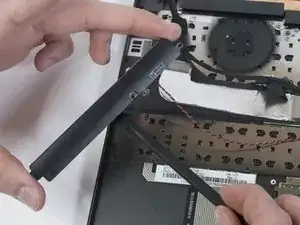

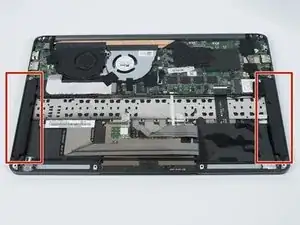

    • Use a plastic spudger to pry the speaker(s) away from the chassis.

    • The speakers are glued to the chassis, making them difficult to remove.

    • The same process is used for both speakers.

Заключение

To reassemble your device, follow these instructions in reverse order.
