Razer Blade Stealth 2017 Keyboard Replacement

Автор: Nolan Wilkins
  • Комментарии: 5
Razer Blade Stealth 2017 Keyboard Replacement

Сложность

Moderate

Шаги

12

Необходимое время

1 - 2 часов

Введение

If your Razer Blade Stealth 13 (2017) keys are unresponsive, sticky, have strange behaviors, have physical damage, or just have wear and tear you might need to replace the keyboard in your device. This guide outlines how to remove the keyboard from your Razer Blade Stealth 13 (2017).

  1. LxXeUEUX1QsYMuo2
    LxXeUEUX1QsYMuo2
    qnJFsCybk6ZWj3fs

    • Before you begin, be sure to turn off your laptop and discharge the battery down to 25%.

    • Use a Torx T5 screwdriver to remove the eight, 3mm screws on the bottom cover of the laptop.

    • Whenever you remove screws from the device, remember to save and label them.

  2. qk4H6BDjtIosjQR5

    • Remove the bottom cover of the laptop by sliding it away from the hinge.

    • Do not force the cover up!

  3. QIvH3Auj5t3CqgN5
    QIvH3Auj5t3CqgN5
    SbmLLqpMocvpYq1W

    • Use your fingernail to pry up and disconnect the battery from the motherboard.

  4. F2jGBNOC4tpmVq16

    • Use a Phillips #00 screwdriver to remove the six, 5mm screws securing the battery.

    Do you have to remove the battery before swapping the wifi card? Is disconnecting the power not enough?

    Charles Tsai -

    Hi Charles,

    If you’re swapping the Wi-Fi card, you don’t need to remove the battery. Disconnecting it will suffice.

    Arthur Shi -

    Are two of these screws shorter than the other four? And if so, where do the two shorter screws go?

    James Spinella -

    Looks like the two shorter screws go where the trackpad is!

    James Spinella -

  5. yvhnafCZb3yMYkjF
    yvhnafCZb3yMYkjF
    QrZNXNVFLGHaBM5M

    • Remove any tape attached to the battery.

    • Use the plastic spudger to pry out the battery.

    After removing the 6 screws securing the battery, mine does not come out easily. There is resistance, and I don't wanna forcefully pull it out. Is it supposed to be easy to pick up and take out or is there some sort of tape holding it down from the bottom?

    kairos -

  6. verOsdPIyiKNhmUA
    verOsdPIyiKNhmUA
    cUtRbLc3NcyWhive
    QQIwJBjiSOJM5AyO

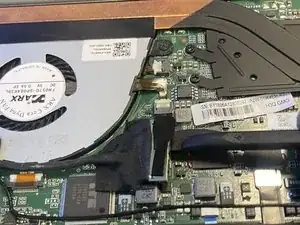

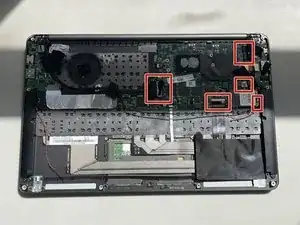

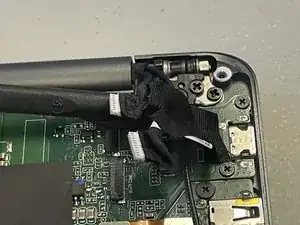

    • Use a plastic spudger to gently undo the connections to the motherboard.

  7. K2C1DCHZCvU2Bru6
    K2C1DCHZCvU2Bru6
    uWZD4RILVihqNyOf
    HVM3StOYRxludPQk

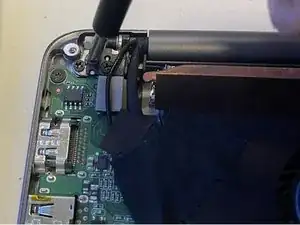

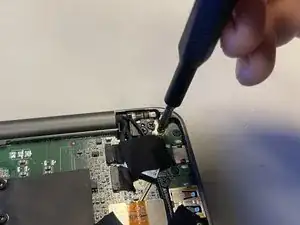

    • Use a Phillips #00 screwdriver to remove the six 4 mm screws holding the display hinges on both side.

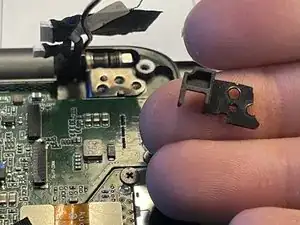

    • Remove the small plastic brackets holding the display hinges.

  8. aBqpBFK1WeFQrJIs

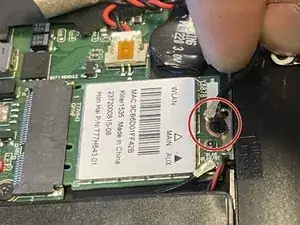

    • Remove the 2.6 mm screw holding the Wi-Fi card down with a Phillips #00 screwdriver.

    • Remove the motherboard from the laptop.

  9. Qd2VaEXJryYoPoXu
    Qd2VaEXJryYoPoXu
    YcK4g3wciFmYUgMV

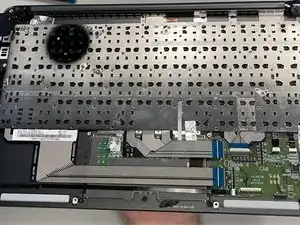

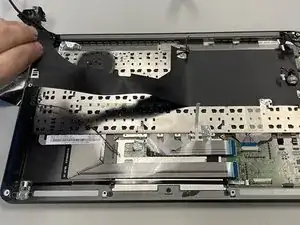

    • Carefully remove tape from the keyboard.

  10. YpRyDrstxwtDUhPW
    YpRyDrstxwtDUhPW
    gboGyNQkGOPSlJxR

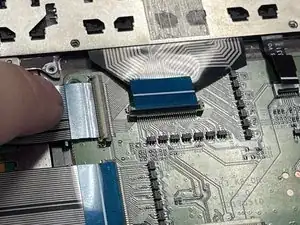

    • Pull out the cables carefully.

  11. IUarK4KU155ulLMX
    IUarK4KU155ulLMX
    4t11CjCho5dsVn3f

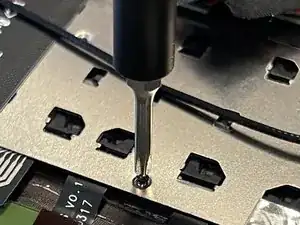

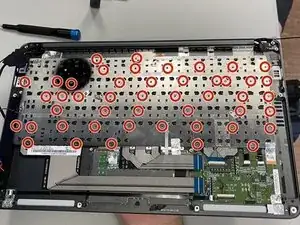

    • Use a Phillips #000 screwdriver to remove the fifty-five 1.6mm screws securing the keyboard.

    • Not all the screws are highlighted.

  12. BlqBBcUNdvDQAOYk
    BlqBBcUNdvDQAOYk
    Rogd5Y5C2IKcL66e
    UrSfPLFsOfmNHDWe

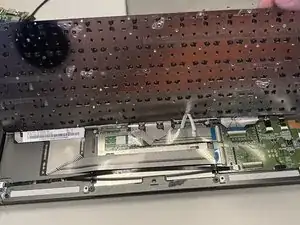

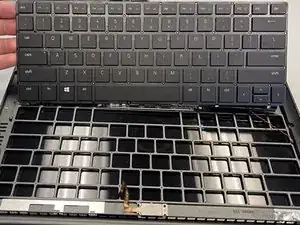

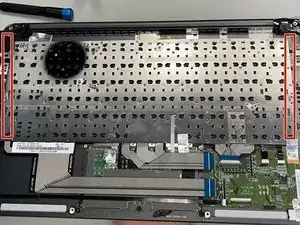

    • Carefully pick up the keyboard from both sides in order to remove the keyboard.

    • Use a spudger if necessary to remove the keyboard.

Заключение

To reassemble your device, follow these instructions in reverse order.
