Введение
If your springs become damaged or weak from extended use, it's wise to replace them to ensure proper function. These springs may be under compression/ tension, so be wary when removing/ replacing these parts.
Инструменты
-
-

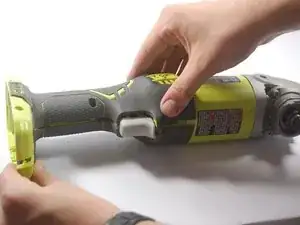

To remove the battery press down on the two buttons located on each side of the battery and pull away from the body of the grinder.
-

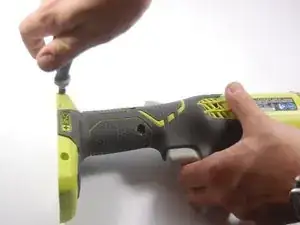

To remove the handle hold grinder with one hand and use the other hand to unscrew the handle with a counter-clockwise motion
-
-
-

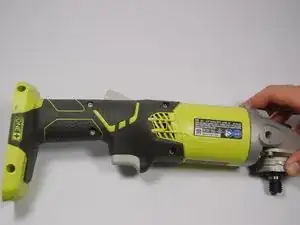

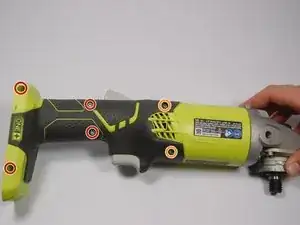

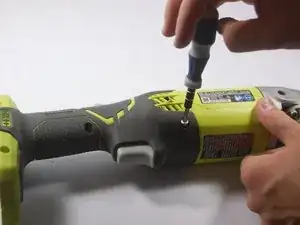

Remove the four 1.8 cm screws from the lower and midsection of the body with a T20-20 Torque screwdriver.
-

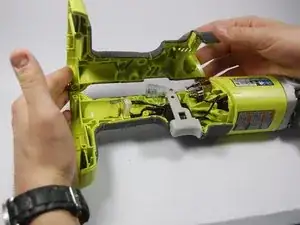

Remove the 3.7 cm screws from the upper section of the body, with the same screwdriver
-
-
-

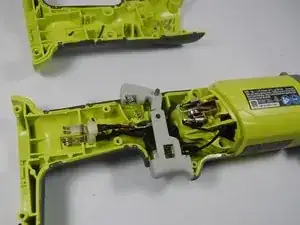

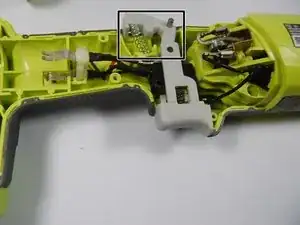

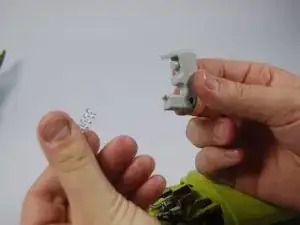

Remove the safety trigger along with the spring.
-

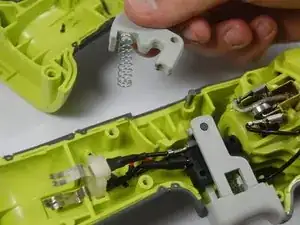

To remove the spring, pull it gently off the bottom of the trigger.
-
To reassemble your device, follow these instructions in reverse order.
