Protocol DURA VR Remote Power Button Replacement

Автор: Kayla Brown
  • Комментарии: 0
Protocol DURA VR Remote Power Button Replacement

Сложность

Moderate

Шаги

4

Необходимое время

4 минут

Введение

In this replacement guide you will learn the steps to replace the power button on your Protocol DURA VR drone remote.

Инструменты

  1. 1VkPWoKeAYxbaEcP
    1VkPWoKeAYxbaEcP
    OdWMEjgBEjfZVKkL

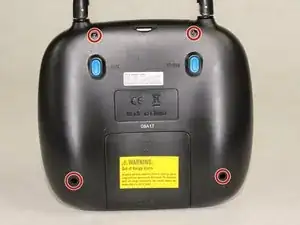

    • Remove the four 0.8mm Phillips #0 screws from the back casing of the remote.

  2. DYUk5aKE4IhUZfUR
    DYUk5aKE4IhUZfUR
    SIamoHDMhRDQCTIh

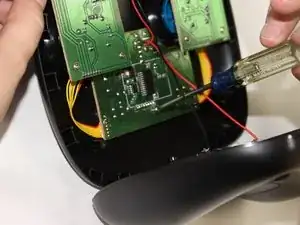

    • Remove the three 0.7mm Phillips #0 screws from the motherboard.

  3. O2GIbdBR1UZvkghE
    O2GIbdBR1UZvkghE
    JNRC64pKvkQOv4Sa

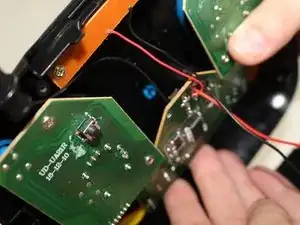

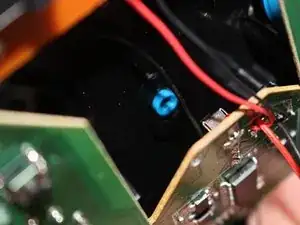

    • Move the motherboard up to allow room for the power bottom to become visible and loose.

  4. BFontErBpjwFguKX

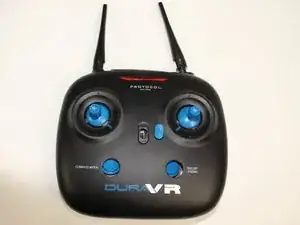

    • Place the remote face up. Then pick up the broken power button and replace with a new button.

Заключение

To reassemble your device, follow these instructions in reverse order.
