ProScan PLT7223G Battery Replacement

Автор: Nathaniel Girard
  • Комментарии: 4
ProScan PLT7223G Battery Replacement

Сложность

Moderate

Шаги

5

Необходимое время

15 минут

Введение

If your device will not turn on at all, use this guide to replace your dead or dying battery and make your device functional again.

  1. fyUMWwAgE66ALakY

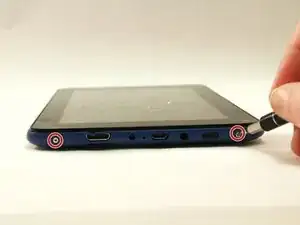

    • Remove both 4 mm screws on the top of the tablet with a PH00 screw driver.

    there are no screws on my unit ?

    Jesse Sanchez -

  2. FFiVjZS2nMbSWY4j

    • Use the blue plastic opening tool to pry open the tablet.

    • You will hear popping sounds. That's okay.

    • Be careful when using the blue plastic opening tool on the side of the device near the speakers, as there is a wire here that connects the speakers to the motherboard.

  3. DR4FcxnkLMQtAabd

    • Use a soldering tool and tweezers to remove the black and red wire from the motherboard.

    • Be sure to pay attention to where each wire goes so that you attach them in the correct order when reassembling the device.

    • Soldering tool will get hot, handle with care.

  4. VDjxPusZDnJObvnZ

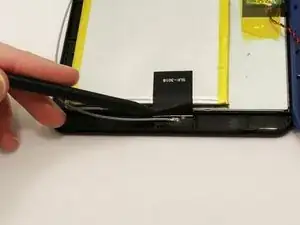

    • Use a spudger to remove the black tape from the battery.

  5. mBbAMHTSNBnFKR4T

    • Using the flat end of a spudger, carefully separate the battery from the base of the device.

    • There is an adhesive holding the charger in place.

    Not as easy as it

    jbouges077 -

Заключение

To reassemble your device, follow these instructions in reverse order.
