ProLine HB25 Disassembly

Автор: Jorma van Dalen
  • Комментарии: 0
ProLine HB25 Disassembly

Сложность

Moderate

Шаги

7

Необходимое время

30 минут

Введение

This guide provides the necessary information on fully disassembling the Proline HB25 hand blender.

  1. BdIBKtMv3HCCLC4J

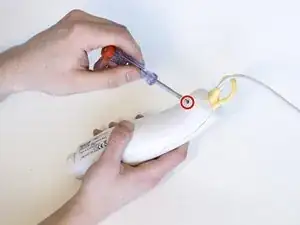

    • Unscrew the screw on the back of the product.

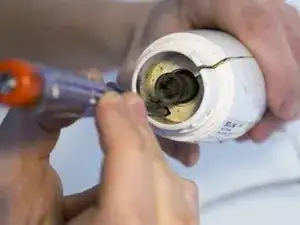

  2. uSKFKhUbhL33RalQ
    uSKFKhUbhL33RalQ
    MuGJoRJdmxAFXog6

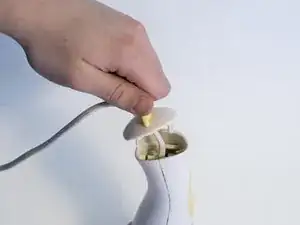

    • Pull out the backtab of the housing.

    • Push in the snapfits with, for instance, a screwdriver.

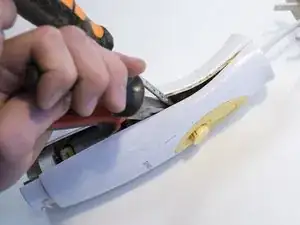

  3. kqrZCIRPBZmxlsCu
    kqrZCIRPBZmxlsCu
    HvOIbdZrAuBd3Dqe

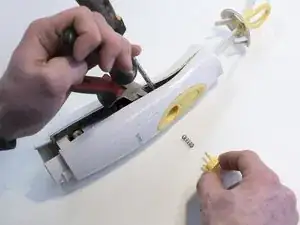

    • Separate the housing with calibrated force.

    • Keep your fingers away from the housing and do not bend or break the housing.

    • Use a flathead screwdriver to push out the lower function button.

    • Remove the separating device.

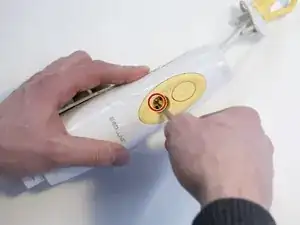

  4. fVFdePfty3cFJJDU

    • Unscrew the hidden screw under the button.

  5. BCYEfSWfonFKcRNU
    BCYEfSWfonFKcRNU
    xldcRXABGSJlEOII

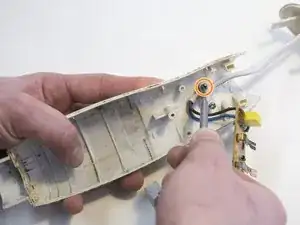

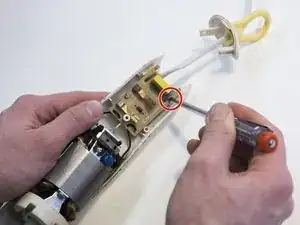

    • Open the housing.

    • Unscrew the circuit board.

    • Unscrew the wire lock.

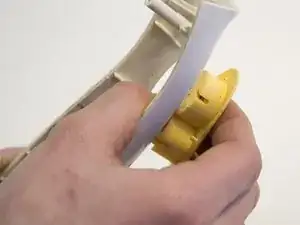

  6. JFYUurjVItMpp6hT
    JFYUurjVItMpp6hT
    EedGuDfuxoRm4SSb

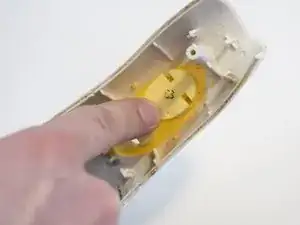

    • Push the housing of the button out of the housing.

  7. nyYBAOkdJQ1NLExG
    nyYBAOkdJQ1NLExG
    22eWSLsTXJvKBqeB

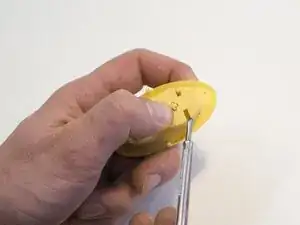

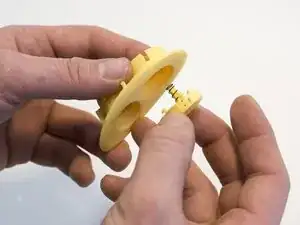

    • Push on the side of the housing of the button to push the button out of the housing.

    • The spring can jump away when you push out the button.

Заключение

To reassemble your device, follow these instructions in reverse order.
