PowerA Spectra Infinity Enhanced Joysticks Replacement

Сложность

Moderate

Шаги

7

Необходимое время

10 - 15 минут

Введение

Use this guide to replace/remove the joysticks of a Power A Spectra Infinity Enhanced Xbox controller.

The joysticks may need to be replaced if they’re worn down, sticky, cracking, or causing unintentional user input. Please ensure the controller is not plugged in before taking it apart.

Инструменты

  1. DBxFkkqT1pmpRNOU
    DBxFkkqT1pmpRNOU
    vKVrCVMKyOZQ2fdu

    • Flip the controller so the back is facing up.

  2. Aox3ap5jbSIeFuJJ

    • Remove the eight 10 mm screws from the back of the controller using a Phillips #0 screwdriver.

  3. 6uwELqf5qBsOUb6g
    6uwELqf5qBsOUb6g
    oQtoZTCrGGCB21lM

    • Unlock the trigger locks before removing the backplate.

    • This will make taking the plate off easier.

    • Use your fingers and carefully remove the backplate.

  4. TUNupIxDZl52GOve

    • Remove the two 10 mm screws connecting the motherboard to the faceplate using a Phillips #0 screwdriver.

  5. h5OQtlwL3W1ayhpX
    h5OQtlwL3W1ayhpX
    GHyW16BfaUcrmysb

    • Use your hand to separate the motherboard from the face plate.

  6. HHEnCuboHwpnLAKV

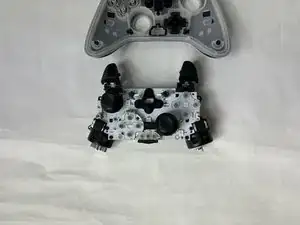

    • Take the motherboard and place it with the joysticks facing upward.

  7. FChENVv51AneRJIC
    FChENVv51AneRJIC
    hXW6KOym5FbOwBXj
    XlLquWyJdmQwW1wj

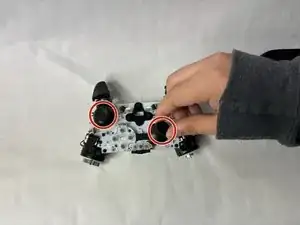

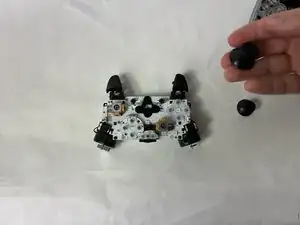

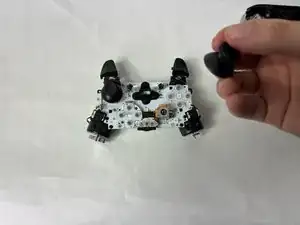

    • Use your hand to carefully remove the joysticks from the motherboard.

Заключение

To reassemble your device, follow these instructions in reverse order.
