Power Mac G5 Top Left Cooling Fan Unit Replacement

Автор: Salvador Aguilar
  • Комментарии: 1
Power Mac G5 Top Left Cooling Fan Unit Replacement

Сложность

Easy

Шаги

7

Необходимое время

5 - 10 минут

Введение

These steps will show you how to install the top left cooling fan unit.

  1. UaBGTOEf6dyVJEiV

    • To avoid electrocution, shut down the computer. Do not open the computer or attempt to install any items inside it while the computer is on.

    • To avoid being burned, wait at least 10 minutes to allow the computer's internal components to cool.

  2. rBARHUQtVA6lfOWt

    • Remove all the cables, including the power cables before opening the unit.

  3. EfcrMHyp4XqEbYsn
    EfcrMHyp4XqEbYsn
    LG2YPVaHQQ1nWjIE

    • Lift the tab to unlock the side panel.

    • The panel should fall out. If the panel does not fall out by itself pull a little from the edges.

  4. mFQ5PLHCQCclToTc
    mFQ5PLHCQCclToTc
    GbBxDZVgNRe2CrnX
    SMxAYMZYyFRqRxWs

    • Remove the air deflector (the clear plastic cover) by pulling on the handle.

  5. Tl3ovQWEjHJZWcFX

    • Locate the top left cooling fan unit.

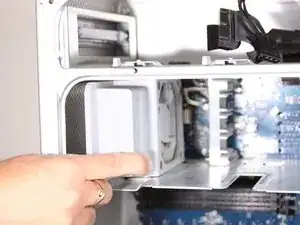

  6. WM4WBAwhFDWZ3FUa

    • Pull the fan straight out from its slot. You will need to remove two cables from the motherboard.

    • It may be easier to reach the cables if you remove the PCI guide (next to the fan unit) first.

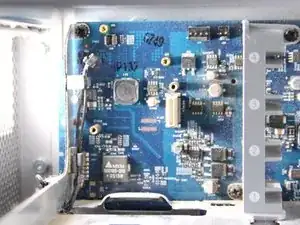

  7. sIMbHbFbCjTk4oa4

    • After pulling out the fan unit, the area should look like this.

Заключение

To reassemble your device, follow these instructions in reverse order.

Автор

Salvador Aguilar

Участник c: 22/01/10

2532 Репутация

Один комментарий

Actually you do need to remove the plastic air deflector, as the fan in question is behind it.

Tim downing -
