Power Mac G4 Quicksilver video adapter card replacement

Автор: Cameron Christensen
  • Комментарии: 0
Power Mac G4 Quicksilver video adapter card replacement

Сложность

Easy

Шаги

7

Необходимое время

5 - 10 минут

Введение

This is hidden prereq.

Инструменты

  1. MI3MLXaxZt2N2WyU

    • The handle to open your computer is located on top of the right side panel.

  2. 2gTC6EkIwJDejnfC
    2gTC6EkIwJDejnfC
    2ucGgBJmyDkABGQ4

    • Grab the circular handle and pull outward.

  3. Nm4mRELLtcYI4YYI

    • Your computer is now open and ready for repair.

  4. VpVmYmvRU6vLIKgF

    • This is your Power Mac G4's video adapter.

  5. DxMGD1qFqmfFgbkI

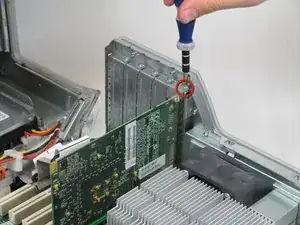

    • Start by removing the screw holding the card to the chassis as shown.

  6. ZknYWMUrZSoo6lpL

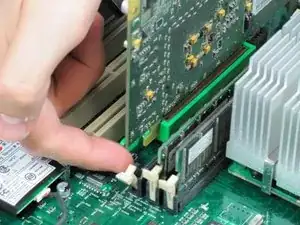

    • Before lifting the card out, this small plastic tab needs to be pulled back there by releasing it entirely.

  7. E5EsGDQ4XaBT4U6U
    E5EsGDQ4XaBT4U6U
    yqkbuEVdxHyR1BQp

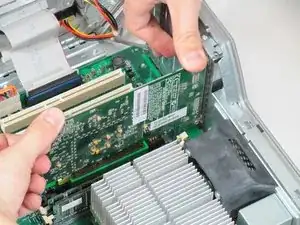

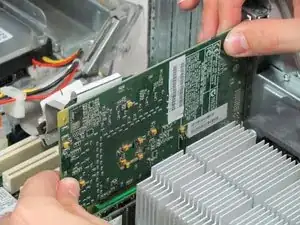

    • With the tab and screw removed, lift the card straight out.

    • When putting the card back in, take care to apply even pressure across the top with your thumbs. This will avoid damaging the card.

Заключение

To reassemble your device, follow these instructions in reverse order.
