Power Mac G4 Quicksilver Hard Drive Assembly Replacement

Автор: Ryan Bylard
  • Комментарии: 0
Power Mac G4 Quicksilver Hard Drive Assembly Replacement

Сложность

Very easy

Шаги

5

Необходимое время

Нет оценки

Введение

This is meant to be a private prereq guide.

Инструменты

  1. siQhN4cavRPNHbEs

    • The hard drive is located in the back right corner of the case.

  2. jptKb6hb5eGAswAI

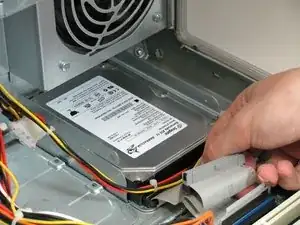

    • Remove the flat ribbon cable by pulling with substantial force.

  3. lFMtgQCKOKYhutEx

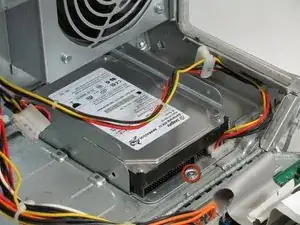

    • Remove the screw holding the hard drive to the computer.

  4. ggAxXEKMaGCPphft

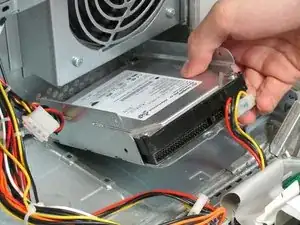

    • Pull the drive up and out of the computer.

  5. Pqm6vHpAonPMHwMM

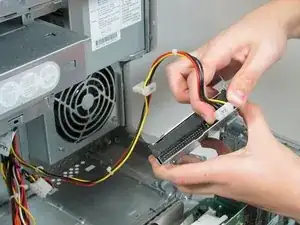

    • Remove the multicolored cable by grasping the plastic connector on either side and pulling with substantial force.

Заключение

To reassemble your device, follow these instructions in reverse order.
