Dexter 300W Corded Delta Sander - 300DS2.5 Toothed Wheel Replacement

Автор: Céline Chemineau
  • Комментарии: 0
Dexter 300W Corded Delta Sander - 300DS2.5 Toothed Wheel Replacement

Сложность

Easy

Шаги

9

Необходимое время

2 минут

Введение

This guide will show you how to replace the gear wheel

Инструменты

  1. g2fLVoinkWNeptJV

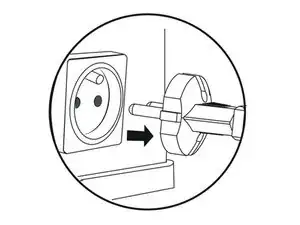

    • Before starting, remember to disconnect the outlet from the area.

  2. yIVbl4VsiWhsWpFp
    yIVbl4VsiWhsWpFp
    a5xwMDNZGrjQHpmx

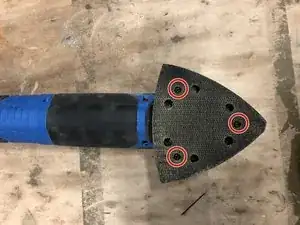

    • Remove the three screws from the pad.

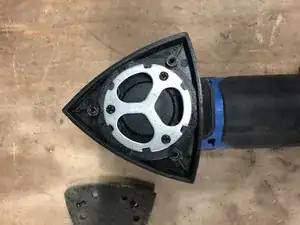

    • Then the three screws of the holding flange.

  3. GNVPsiT1GCVgQUZK
    GNVPsiT1GCVgQUZK
    fhOWvHQ1wSsSoC4C
    KFaKqvedYyLBhtHY

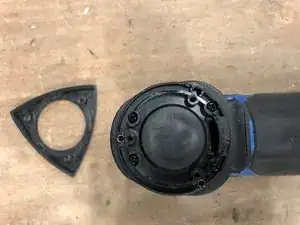

    • Be careful to keep the three small balls.

  4. 4BqsUIBplij2lHWm
    4BqsUIBplij2lHWm
    hWI56YxCQCMAqeWi

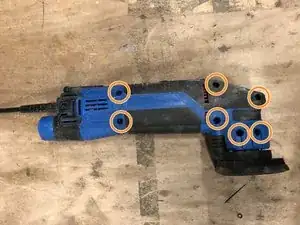

    • Unscrew the screws to open the shell.

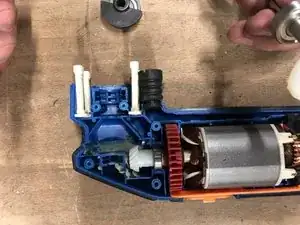

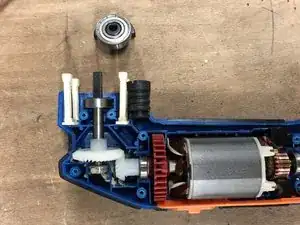

  5. My6Ge6xAmML2q2yo
    My6Ge6xAmML2q2yo
    sx3NXWVpYrIvPWfX

    • Remove the pendulum and recover the bearing.

  6. ibvKwQESBX2jJH6I

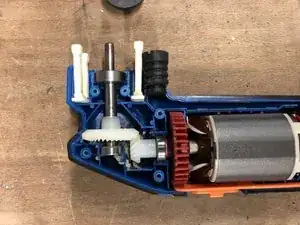

    • Remember to put back some fat before replacing the new pendulum.

    • Replace the new part.

  7. nbJmaFJERLSjnAYf

    • Before closing, check that no cables are blocked and that each room is in its housing.

    • Replace the screws on the shell.

  8. inBjTJbCw1oNWEAU
    inBjTJbCw1oNWEAU
    hIeeUJHtTvbmWHy2
    iSQE4Z1WtjxqMkE1

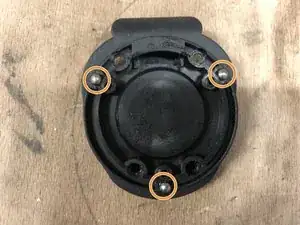

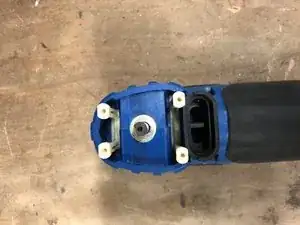

    • Replace the holding flask, be careful to have the three small balls.

  9. cSRqgRlVwHfYHAHW
    cSRqgRlVwHfYHAHW
    WqFVboifOqSZTYPj

    • Line the three screws of the holding flange and then that of the pad.

Заключение

To reassemble follow guide or in reverse
